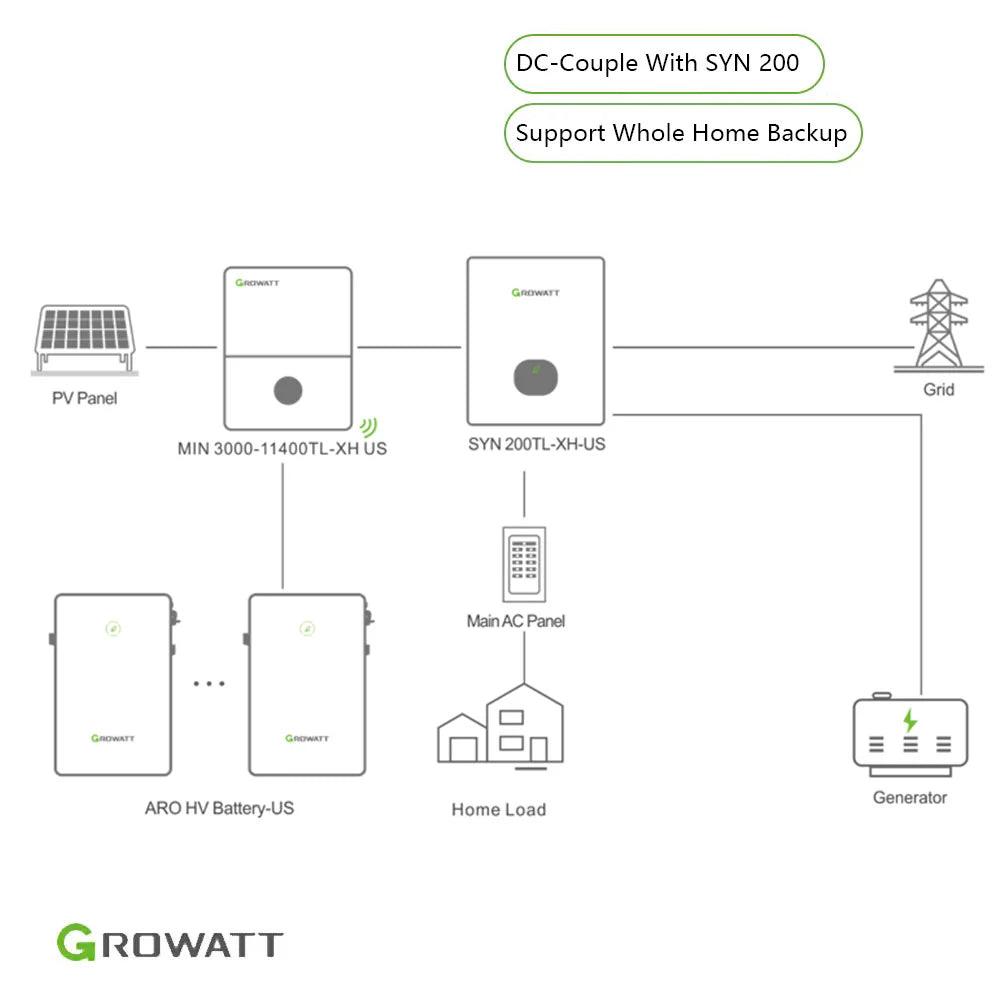

Introducing the Growatt Whole Home Backup Power System, an all-in-one solution for seamless energy storage and management. This system is designed for both off-grid and grid-tie applications, ensuring that your home remains powered and efficient, regardless of grid status. The kit includes the Growatt hybrid inverter, a high-capacity APX Battery, and the SYN200-XH-US 200A Automatic Transfer Switch with Integrated SM‐US for Whole Home Backup
Compatible with V3 Inverter
Ideal for households with daily electricity consumption. This system is particularly beneficial for homes with high-power loads such as electric vehicles and swimming pools. It maximizes self-consumption of solar energy, significantly reduces electricity bills, and ensures energy independence during power outages.
System Key Features:
Growatt 11.4kW Whole Home Backup Power System 1 Includes:

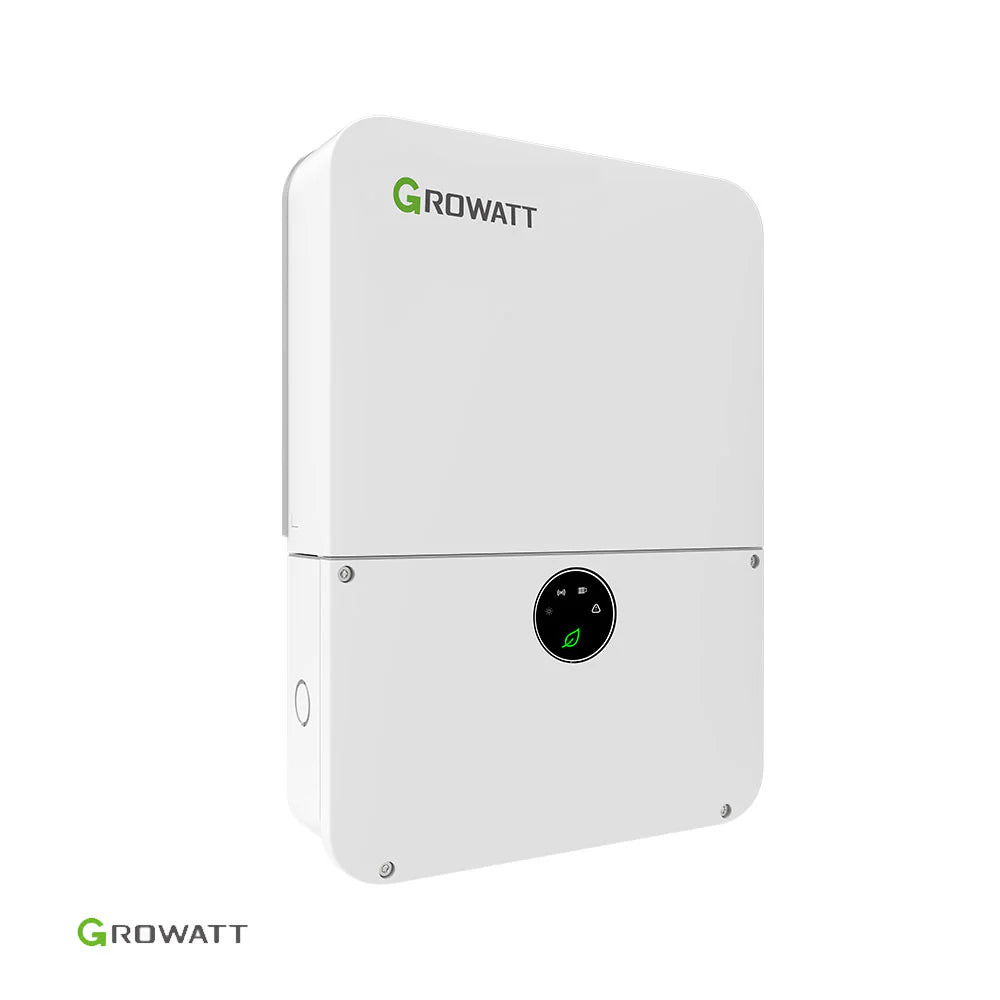

Growatt 11.4kW MIN 11400TL-XH-US Grid-Tie | Battery Storage Solar Inverter
Growatt APX 10kWh High Voltage Battery:
Growatt SYN 200‐XH‐US‐11A:
With the Growatt Whole Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
Growatt 11.4kW MIN 11400TL-XH-US Grid-Tied | Battery Storage Solar Inverter | Details |
---|---|
Manufacturer | Growatt |
Type | Grid-Tie / Battery Storage |
AC Power | 11.4kW |
Max PV Input Power | 22.8kW |
MPP Trackers | 4 |
MPPT Voltage Range | 235~500V |
Max Efficiency | 98.5% |
Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
Warranty | 10 Years |
Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
PV Input | |
Max PV Input Power | 22.8 kW |
Max Input Voltage | 600V |
Full Load Voltage Range | 235~500V |
Max Input Current per MPTT | 13.5A |
Max Short-circuit Current per MPTT | 16.9A |
MPP Trackers | 4 |
Strings per MPP Tracker | 2 |
Battery Connection | |
Battery Voltage Range | 360~550V |
Rated Battery Voltage | 400V |
I/O DC Current | 34A/34A |
I/O DC Power | 11.7kW |
AC Output (Grid) | |
Nominal Power | 11.4kW |
Max Output Current | 48A |
Nominal AC Voltage | 208/240V |
General Data | |
Dimensions (H*W*D) | 15.8*25.2*7.4 inch (400*638*187mm) |
Weight | 45.2lbs (20.5kg) |
Installation | Indoor, Outdoor, Wall-mounted |
Monitoring Module | WiFi+ LAN, 4G(Optional) |
Growatt APX 5kWh 330V-450V Battery Module (x2) | Details |
---|---|
Module | APX 5.0P-B1 |
Nominal Capacity/Energy | 100Ah/5kWh |
Rated Usable Capacity/Energy | 100Ah/4.5kWh |
Rated Voltage | 385V |
Operating Voltage | 330-450V |
Rated Current (25℃) | 7.6A |
Maximum Current (25℃) | 12.5A |
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
Operating Temperature Range | -10~50℃ |
Storage Conditions | -20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH |
Cooling | Natural cooling |
Dimensions (W/D/H) | 690/185/295mm±2mm |
Weight | 50±1kg |
Model (Power Module) | APX 55027-P0 |
B+/B- Voltage Range | 330V-450V |
BAT+/BAT- Voltage Range | 380-550V |
Temperature Range | -10~50℃ |
IP Rating | IP66 |
Warranty | 10 years |
Communication Method | CAN2.0 |
Certification & Licensing | IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3 |
Environment Requirements | RoHS |
Growatt 11.4kW Whole Home Backup Power System 2 Includes:
Growatt 11.4kW MIN 11400TL-XH-US Grid-Tie | Battery Storage Solar Inverter
Growatt APX 20kWh High Voltage Battery:
Growatt SYN 200‐XH‐US‐11A:
With the Growatt Whole Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
Growatt 11.4kW MIN 11400TL-XH-US Grid-Tied | Battery Storage Solar Inverter | Details |
---|---|
Manufacturer | Growatt |
Type | Grid-Tie / Battery Storage |
AC Power | 11.4kW |
Max PV Input Power | 22.8kW |
MPP Trackers | 4 |
MPPT Voltage Range | 235~500V |
Max Efficiency | 98.5% |
Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
Warranty | 10 Years |
Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
PV Input | |
Max PV Input Power | 22.8 kW |
Max Input Voltage | 600V |
Full Load Voltage Range | 235~500V |
Max Input Current per MPTT | 13.5A |
Max Short-circuit Current per MPTT | 16.9A |
MPP Trackers | 4 |
Strings per MPP Tracker | 2 |
Battery Connection | |
Battery Voltage Range | 360~550V |
Rated Battery Voltage | 400V |
I/O DC Current | 34A/34A |
I/O DC Power | 11.7kW |
AC Output (Grid) | |
Nominal Power | 11.4kW |
Max Output Current | 48A |
Nominal AC Voltage | 208/240V |
General Data | |
Dimensions (H*W*D) | 15.8*25.2*7.4 inch (400*638*187mm) |
Weight | 45.2lbs (20.5kg) |
Installation | Indoor, Outdoor, Wall-mounted |
Monitoring Module | WiFi+ LAN, 4G(Optional) |
Growatt APX 5kWh 330V-450V Battery Module (x4) | Details |
---|---|
Module | APX 5.0P-B1 |
Nominal Capacity/Energy | 100Ah/5kWh |
Rated Usable Capacity/Energy | 100Ah/4.5kWh |
Rated Voltage | 385V |
Operating Voltage | 330-450V |
Rated Current (25℃) | 7.6A |
Maximum Current (25℃) | 12.5A |
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
Operating Temperature Range | -10~50℃ |
Storage Conditions | -20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH |
Cooling | Natural cooling |
Dimensions (W/D/H) | 690/185/295mm±2mm |
Weight | 50±1kg |
Model (Power Module) | APX 55027-P0 |
B+/B- Voltage Range | 330V-450V |
BAT+/BAT- Voltage Range | 380-550V |
Temperature Range | -10~50℃ |
IP Rating | IP66 |
Warranty | 10 years |
Communication Method | CAN2.0 |
Certification & Licensing | IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3 |
Environment Requirements | RoHS |
