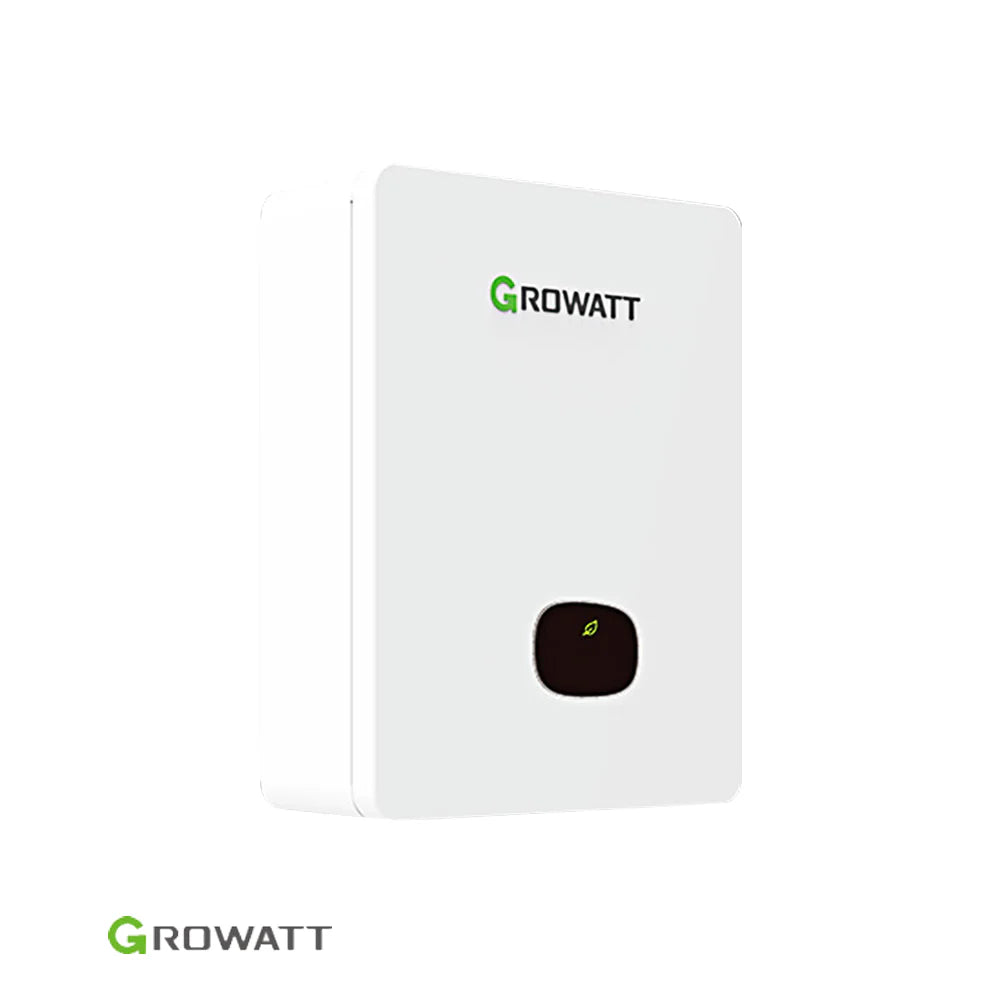

Growatt SYN 360-680U-US for Industrial and Commercial Power Supply
The Growatt SYN 360-680U-US is a cutting-edge power system solution tailored for industrial and commercial use. With four models to choose from, this product delivers efficient and reliable power management for a variety of demanding applications.
The Growatt SYN 360-680U-US series is the perfect solution for industrial and commercial facilities requiring scalable, efficient, and dependable power systems. Whether it’s powering manufacturing plants, large data centers, or commercial complexes, this product ensures smooth and reliable operation in any scenario.
Specification | SYN 450U-US | SYN 540U-US | SYN 680U-US | SYN 360U-US |
---|---|---|---|---|
AC Nominal Power | 160kW | 300kW | 245kW | 300kW |
Max. AC Apparent Power | 160kVA | 330kVA | 245kVA | 300kVA |
Nominal AC Voltage | 208V/220V | 480V | 480V | 480V |
AC Voltage Range | ±15%~±10% | ±15%~±10% | ±15%~±10% | ±15%~±10% |
AC Frequency (Nominal) | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
AC Grid Frequency Range | 45-65Hz | 45-65Hz | 45-65Hz | 45-65Hz |
Max. Input Current | 444.1A @208V | 541.3A @480V | 680.8A @208V | 360.8A @480V |
On/Off-Grid Switch Time | <20ms | <20ms | <20ms | <20ms |
AC Grid Connection Type | 3P3W+PE/3P4W+PE | 3P3W+PE/3P4W+PE | 3P3W+PE/3P4W+PE | 3P3W+PE/3P4W+PE |
AC Nominal Power (DG) | 80kW | 150kW | 165kW | 150kW |
Max. AC Apparent Power (DG) | 88kVA | 165kVA | 181.5kVA | 165kVA |
Max. Input Current (DG) | 244.3A @208V | 397A @480V | 503.8A @208V | 198.5A @480V |
Compatible Inverter | WIT 28-55KTL3-HU/AU-US L2 | WIT 50-100K-HU/AU-US | WIT 28-55KTL3-HU/AU-US L2 | WIT 28-55KTL3-HU/AU-US L2 |
No. of Inverter Inputs | 3 | 3 | 3 | 3 |
AC Nominal Power (Inverter) | 28kW*3 | 50kW*3 | 55kW*3 | 50kW*3 |
Nominal AC Voltage (Inverter) | 208V/220V | 480V | 208V/220V | 208V/220V |
The maximum input current for the Growatt SYN 360-680U-US is 360.8A at 480V, depending on the specific model within the series.
The nominal power output ranges from 150kW to 300kW, providing flexible power solutions for industrial and commercial applications.
The nominal AC voltage is 480V with an AC frequency of 50/60Hz, and it supports a frequency range of 45-65Hz, ensuring compatibility across a wide range of power systems.
The switchover time for grid disconnection is less than 20ms, ensuring a seamless transition between on and off-grid modes.
Yes, the SYN 360-680U-US supports integration with diesel generators (DG), making it an ideal solution for power redundancy and backup.
The system includes advanced safety features such as overload, overvoltage, and short-circuit protection, ensuring safe operation in demanding environments.
The Growatt SYN 360-680U-US is compatible with inverters such as the WIT 28-55KTL3-HU/AU-US L2, allowing for smooth integration in different setups.
The system features efficient thermal management, ensuring reliable operation even under high loads, maintaining optimal performance through natural convection cooling.
