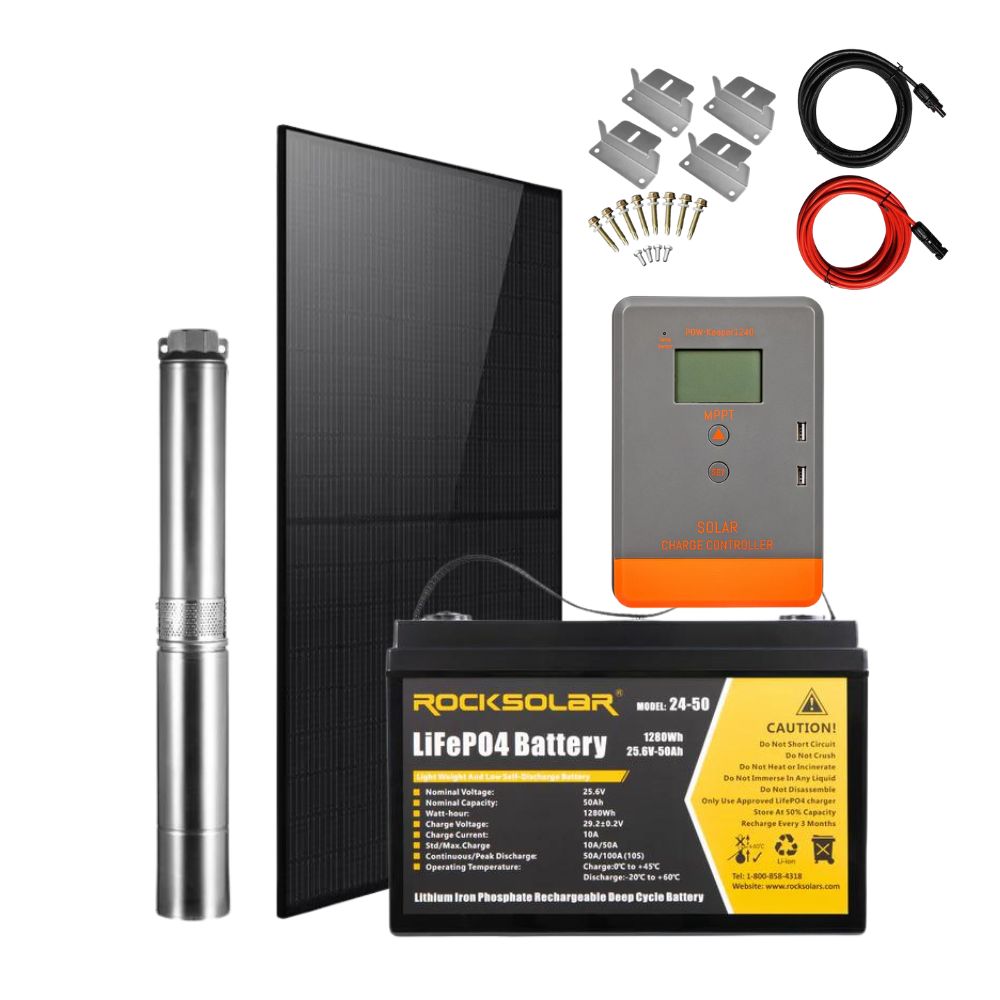

The ROCKSOLAR 500W 24V Off-Grid Solar Water Pump Kit stands as a pioneering solution for remote and independent water supply needs. Expertly crafted for off-grid applications, this robust system includes a 24V 50Ah Deep Cycle LiFePO4 Battery with a high-tech BMS, 1 X 440W Rigid Monocrystalline Solar Panel,and a precise 20A MPPT Solar controller, ensuring smooth and consistent water pumping. It’s equipped with a high-performance 24V 1/3 HP Brushless Solar DC Submersible Well Pump, designed for seamless solar operation, delivering a maximum flow of 5.72GPM at 0 feet head. 230ft max head. Perfectly tailored for use in varied environments, this system guarantees reliability with its durable stainless steel construction and an inbuilt pump controller for hassle-free operation. The battery and solar panel come with an 10-year warranty, showcasing ROCKSOLAR's commitment to long-lasting service. Whether it's for agricultural irrigation, livestock watering, or rural home use, the ROCKSOLAR 500W solar powered pump system offers a self-sufficient water supply, making it an indispensable asset for off-grid living in Canada.
Product Features
ROCKSOLAR 24V 50Ah Deep Cycle LiFePO4 Battery with BMS System:
440W Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:
ROCKSOLAR 20A MPPT Solar Charge Controller:
ROCKSOLAR 24V 1/3 HP Brushless Solar DC Submersible Well Pump:
Technical Specifications
| 24V 50Ah Deep Cycle LiFePO4 Battery | Details |
|---|---|
| Product Dimensions | 14.99 x 6.6 x 9.4 cm |
| Battery Type | Lithium Ion battery |
| Special Features | Deep cycle |
| Working Temperature | -20C -60C |
| Voltage | 24 Volts (DC) |
| Item Weight | 13 kg |
| Warranty | 10Years |
| 440W Panel Specification | Details |
|---|---|
| Panel Type | Monocrystalline |
| Power Output | 440W |
| Maximum Output Voltage | 32.98V |
| Cell Efficiency | 22.57% |
| Frame Material | Anodized Aluminum |
| Dimensions | 1722mm x 1134mm x 30mm |
| Weight | 22 kg |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP68 |
| Front Glass | Anti-reflective tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Service Life | Over 30 years |
| Warranty | 12 years |
| 20A MPPT Solar Charge Controller | Details |
|---|---|
| Max Open Voltage of PV Module | 75Vdc |
| MPP Tracking Efficiency | 99.50% |
| Light Control Voltage | 5V |
| Charge Algorithm | 3 Stage |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 20A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | 16V (24V x 2) |
| Duration for absorption charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
| Floating Charging voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
| Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |
| Dimension | 123*178*48 |
| Installation Hole | 108*120 ∅5 |
| Warranty | 1 Year |
| 500W Inverter Specification | Details |
|---|---|
| Model | RSINV500-001 |
| Output | Rated Power: 500W AC Voltage: 120V Frequency: 60HZ Resistive Load Continuous Output Power: 500W Inductive Load Continuous Output Power: 450W Capacitive Load Continuous Output Power: 150±30WPF0.6 Waveform: Pure Sine Wave Waveform Distortion (THD): ≤5% |
| Input | Battery Voltage: 12Vdc Voltage Range: 1015.5Vdc DC Current: 52.1A No Load Loss: ≤0.8A Shutdown Mode Static Current: 15mA Maximum Efficiency: 91% Battery Type: All 12V batteries |
| Output Protection | Over Temperature, Output Short Circuit, Overload USB Output: 5V, 2.1A |
| Environmental Conditions | Operating Temperature: 040℃ Operating Humidity: 1090%RH Storage Temperature/Humidity: -30℃70℃, 1095%RH |
| Physical Characteristics | Weight: Net Weight: 0.94Kg Size: 250.6*118*56mm (L*W*H) |
| 24V Brushless Solar DC Submersible Well Pump | Details |
|---|---|
| Product | Rocksolar 24V Brushless Solar DC Submersible Well Pump |
| Pump Model | Complete S.S. 304 + Screw |
| Motor | Brass Cap + S.S. 304 Body |
| Controller | Inbuilt Controller |
| Diameter(inch) | 3'' |
| Voltage(V) | 24 |
| Cable | 2M |
| Power(W) | 250 |
| Max Flow(m3/h) | 1.3 |
| Max Head(m) | 70 |
| Outlet(inch) | 1" |
| Warranty | 5 Year |
This system includes a 24V 50Ah Deep Cycle LiFePO4 Battery with BMS, a 400W Rigid Monocrystalline Solar Panel, a 20A MPPT Solar Charge Controller, a 500W Pure Sine Wave Inverter, and a 24V 1/3 HP Brushless Solar DC Submersible Well Pump.
The LiFePO4 Battery and Solar Panel come with an 10-year warranty, and the remaining components are covered by a 1-year warranty.
Yes, the system is designed for continuous operation, suitable for applications such as water pumping in remote locations.
Yes, the system can be expanded with additional components for increased power demands.
The system operates effectively in a wide range of temperatures, but performance can vary based on environmental conditions.
Installation guides are provided, and our support team is available for further assistance.
It's generally suitable for various locations, but checking local solar conditions is advisable for optimal setup.
It's crafted for moderate to high-demand water pumping tasks, but specifics should be compared with the device's capacity.
Minimal maintenance is required, with regular checks and cleaning to ensure performance.
Yes, customer support is available for any issues or questions regarding the system.
The submersible well pump requires a 24V DC power source, which can be provided by the included components.
The pump delivers a max flow rate of 1.3m3/h, suitable for various water supply applications.
It should not be used in dirty or corrosive water to prevent damage and wear.
The pump is low maintenance but should be kept submerged and checked if not used for long periods.
Yes, there's a 5-year warranty, covering manufacturing defects but not damage from misuse or improper operation.
