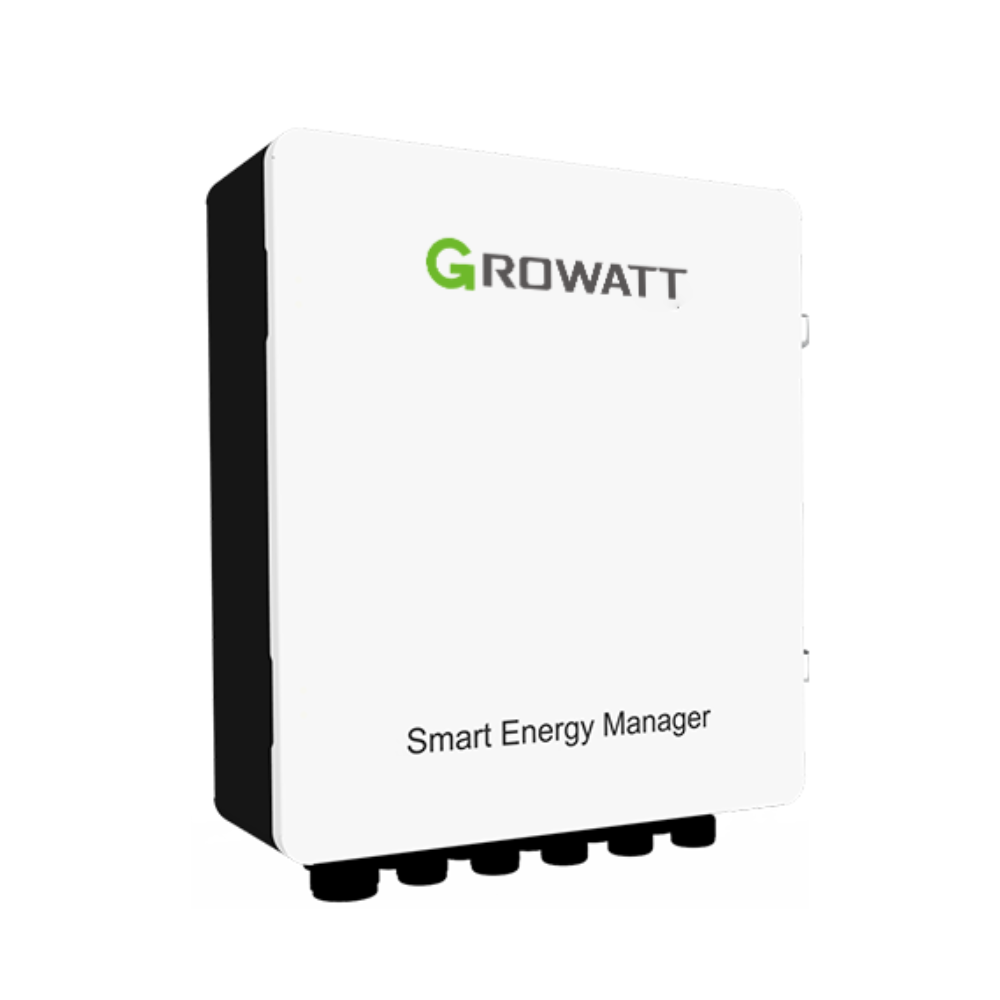

Introducing the pinnacle of energy management technology, the 1MW Smart Energy Manager ShineSEM-X-RM by ROCKSOLAR Canada, tailored for the most demanding energy systems in large industrial and commercial sectors. This state-of-the-art device is engineered to masterfully manage and optimize energy consumption on an unprecedented scale, offering the highest level of efficiency and reliability.
Key Features:
Technical Excellence:
The 1MW Smart Energy Manager ShineSEM-X-RM stands as a testament to ROCKSOLAR Canada's commitment to innovative energy solutions, offering large-scale commercial and industrial facilities the ultimate tool in energy efficiency and operational excellence.
| Specification | Details |
|---|---|
| System Size | 1MW |
| Communication | RS485, Ethernet (Yes), PLC (Optional), Ring Network Switch (Optional) |
| Max. Inverter Number | 9PCS |
| Communication Distance | RS485: 1000m, Ethernet Cable: 100m |
| Dimensions (W/H/D) | 398/450/158mm (15.66*17.71*6.22 inches) |
| Weight | 13.5kg (29.7lbs) |
| Operation Temperature Range | -22°F to +149°F (-30°C to +65°C) |
| Protection Rating | IP66 (NEMA 4X) |
| Relative Humidity | 5%-95% no-condensing |
| Placement | Indoor |
| Altitude | 13123ft (4000m) |
| Nominal Input Voltage | 208V/220V/400V/480V/540V |
| Input Voltage Range | 187V-594V |
| Normal Input Frequency | 50/60Hz |
| Max. Current (CT Detection) | 2000A |
| Max. Input Current (CT Second Side) | 5A |
| Accuracy (@Rated CT Current) | 0.5 |
| Certifications | CE, ROHS |
It is designed for systems requiring up to 1MW, making it suitable for very large commercial and industrial applications that demand high-capacity energy management.
The device supports RS485 and Ethernet as standard communication interfaces, with optional PLC and Ring Network Switch available for enhanced connectivity and integration.

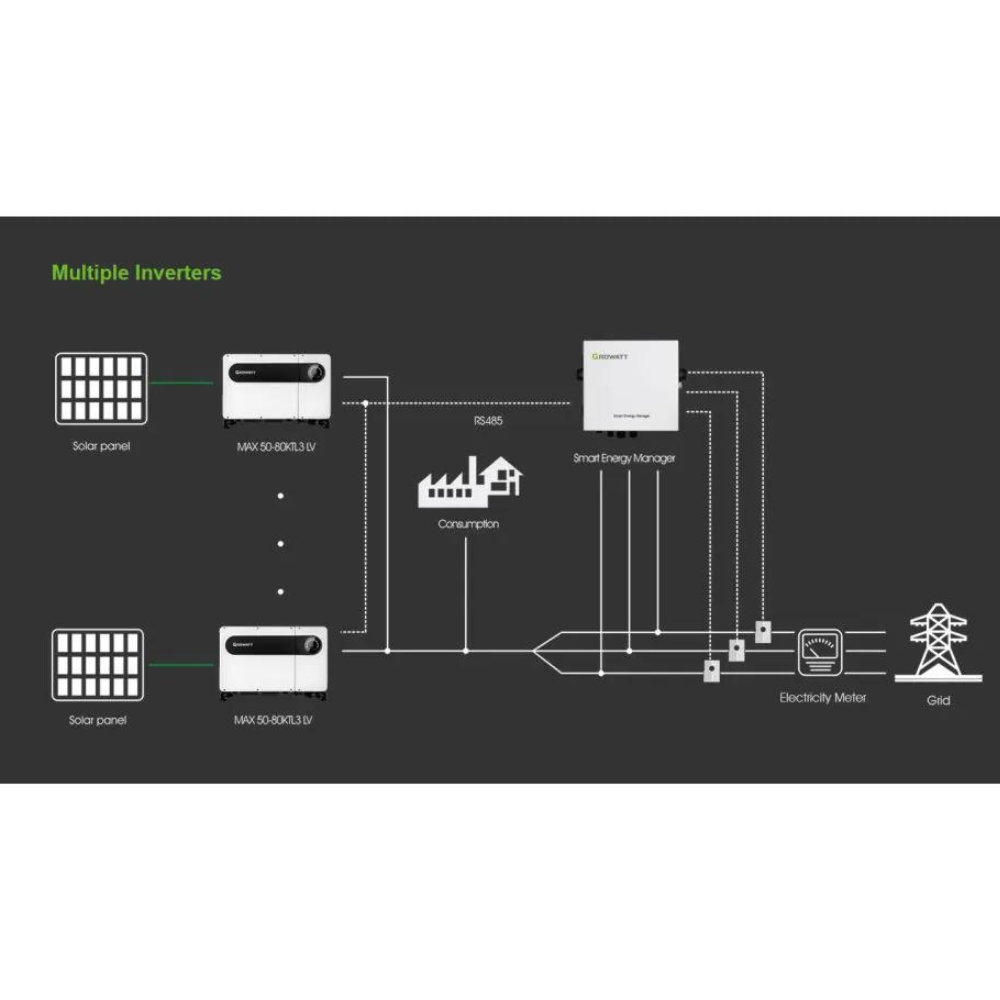

Up to 9 inverters can be directly managed, allowing for comprehensive control over multiple energy conversion units within a system.
It can operate efficiently at altitudes up to 13123ft (4000m), ensuring reliable performance even in high-altitude installations.
The Smart Energy Manager is built to function in temperatures ranging from -22°F to +149°F (-30°C to +65°C), catering to a wide variety of environmental conditions.
Yes, it is specifically designed for indoor use, offering optimal performance in controlled environments with a relative humidity range of 5%-95% non-condensing.
It boasts a high accuracy rate of 0.5 for current detection, capable of handling up to 2000A for the CT detection side, ensuring precise monitoring and management of energy flows.
