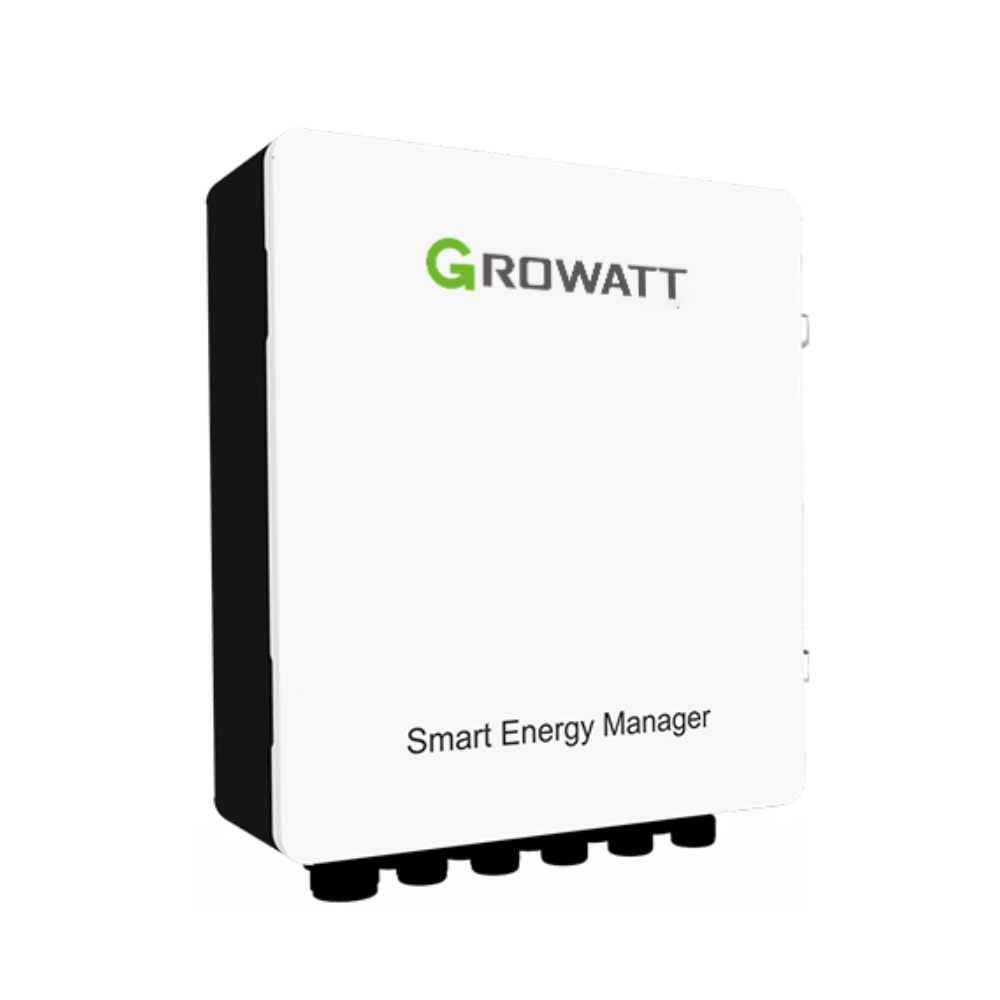

Product Spotlight: 100kW Smart Energy Manager ShineSEM-X-RM
Introducing the 100kW Smart Energy Manager ShineSEM-X-RM, a flagship solution by ROCKSOLAR Canada, designed to redefine the efficiency and intelligence of commercial and industrial energy management systems. This compact yet powerful device is engineered to optimize energy usage, ensuring maximum efficiency and sustainability for businesses.
Key Features:
Technical Specifications:
The 100kW Smart Energy Manager ShineSEM-X-RM is not just a product but a comprehensive energy solution that empowers businesses to monitor, control, and optimize their energy consumption with unparalleled precision and ease. Embrace the future of energy management with ROCKSOLAR Canada's innovative technology.
| Specification | Details |
|---|---|
| System Size | 100KW |
| Communication | RS485, Ethernet, Optional PLC, Optional Ring Network Switch |
| Max. Inverter Number | 9PCS |
| Communication Distance | RS485: 1000m, Ethernet Cable: 100m |
| Dimensions (W/H/D) | 398/450/158mm (15.66*17.71*6.22 inches) |
| Weight | 13.5kg (29.7lbs) |
| Operation Temperature Range | -22°F to +149°F (-30°C to +65°C) |
| Protection Rating | IP66 (NEMA 4X) |
| Relative Humidity | 5%-95% no-condensing |
| Placement | Indoor |
| Altitude | 13123ft (4000m) |
| Nominal Input Voltage | 208V/220V/400V/480V/540V |
| Input Voltage Range | 187V-594V |
| Normal Input Frequency | 50/60Hz |
| Max. Current (CT Detection) | 600A |
| Max. Input Current (CT Second Side) | 5A |
| Accuracy (@Rated CT Current) | 0.5 |
The 100kW Smart Energy Manager ShineSEM-X-RM is designed to manage systems up to 100KW, making it ideal for small to medium-sized commercial energy management applications.
It supports RS485 and Ethernet for basic communication needs, with optional PLC and a Ring Network Switch for advanced connectivity and integration capabilities.

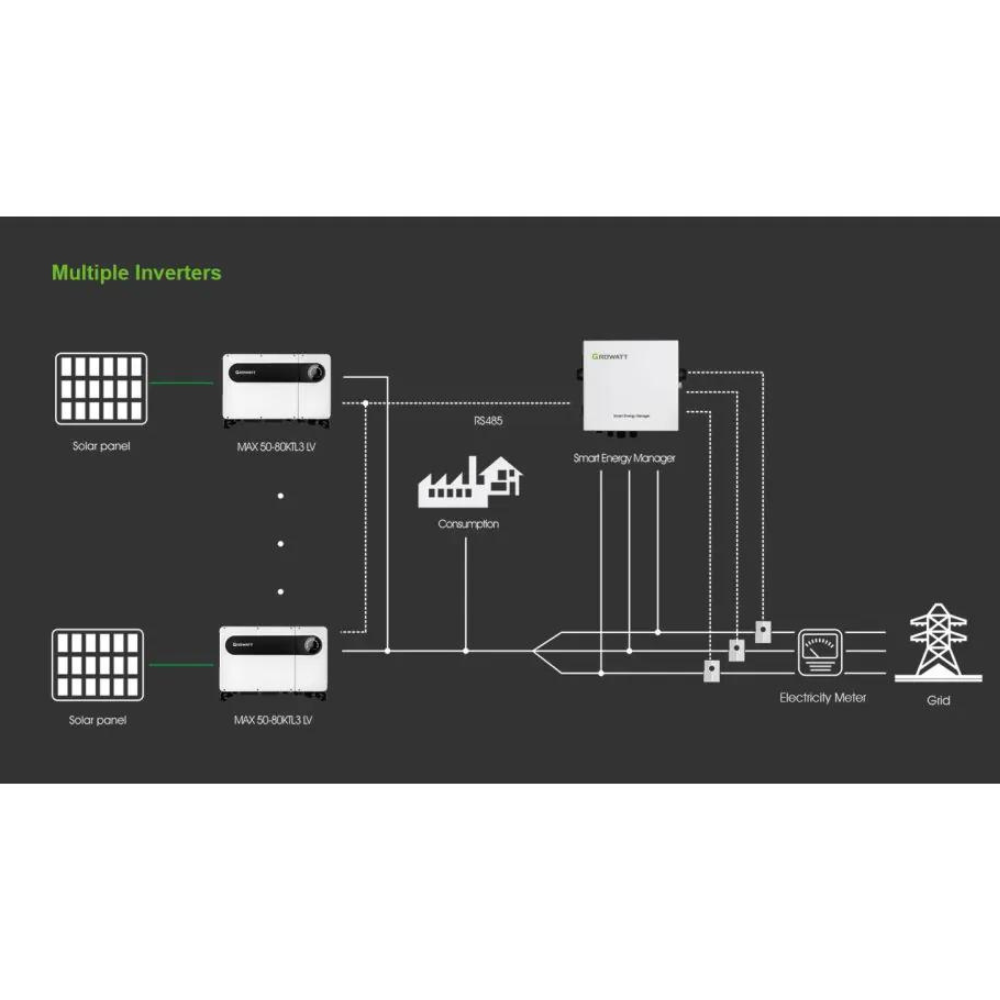

The ShineSEM-X-RM can support up to 9 inverters, allowing for comprehensive energy management across multiple units.
It operates effectively within a temperature range of -22°F to +149°F (-30°C to +65°C), ensuring reliability under various environmental conditions.
With an IP66 (NEMA 4X) protection rating, it is well-protected against dust and water, suitable for indoor use in demanding conditions.
Yes, it is certified for use at altitudes up to 13123ft (4000m), accommodating a range of installation locations.
It features maximum current detection up to 600A for the CT detection side, with a max. input current of 5A on the CT secondary side, ensuring accurate energy management.
