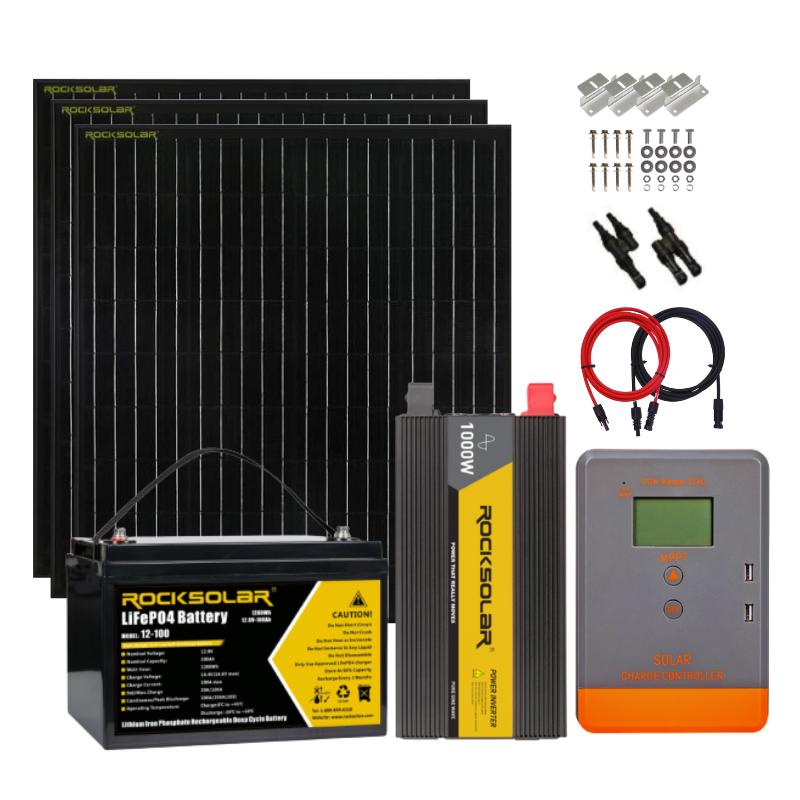

The ROCKSOLAR 1000W 12V Off-Grid Solar System is the ultimate power solution for cottage owners in Canada. Designed for reliability and efficiency, this system ensures dependable off-grid power whenever you need it. This advanced solar system includes five essential components: a 12V 100AH LiFePO4 Battery, two 200W Rigid Solar Panels, a 40A MPPT Solar Charge Controller, and a 1000W Pure Sine Wave Inverter. It is engineered to provide constant power for vital devices like a mini fridge, LCD TV, wifi routers, DC brushless water pump, coffee machine (<1000W), lighting, stereo, laptop, and phone chargers. Perfect for usage throughout the summer months, the ROCKSOLAR 1000W 12V Off-Grid Solar System guarantees a consistent power source you can rely on. The 12V 100AH LiFePO4 Battery and 200W Rigid Solar Panels come with a robust 10-year warranty, while the remaining components are covered for 1 year. This off-grid solar system is also designed for future power needs, offering hassle-free upgrade services and interchangeable key components. ROCKSOLAR ensures that all components hold their value, maximizing the return on your investment. With the ROCKSOLAR 1000W 12V Off-Grid Solar System, you can enjoy uninterrupted power at your cottage. Experience the convenience of 24/7 power and the confidence of a dependable, long-term warranty.

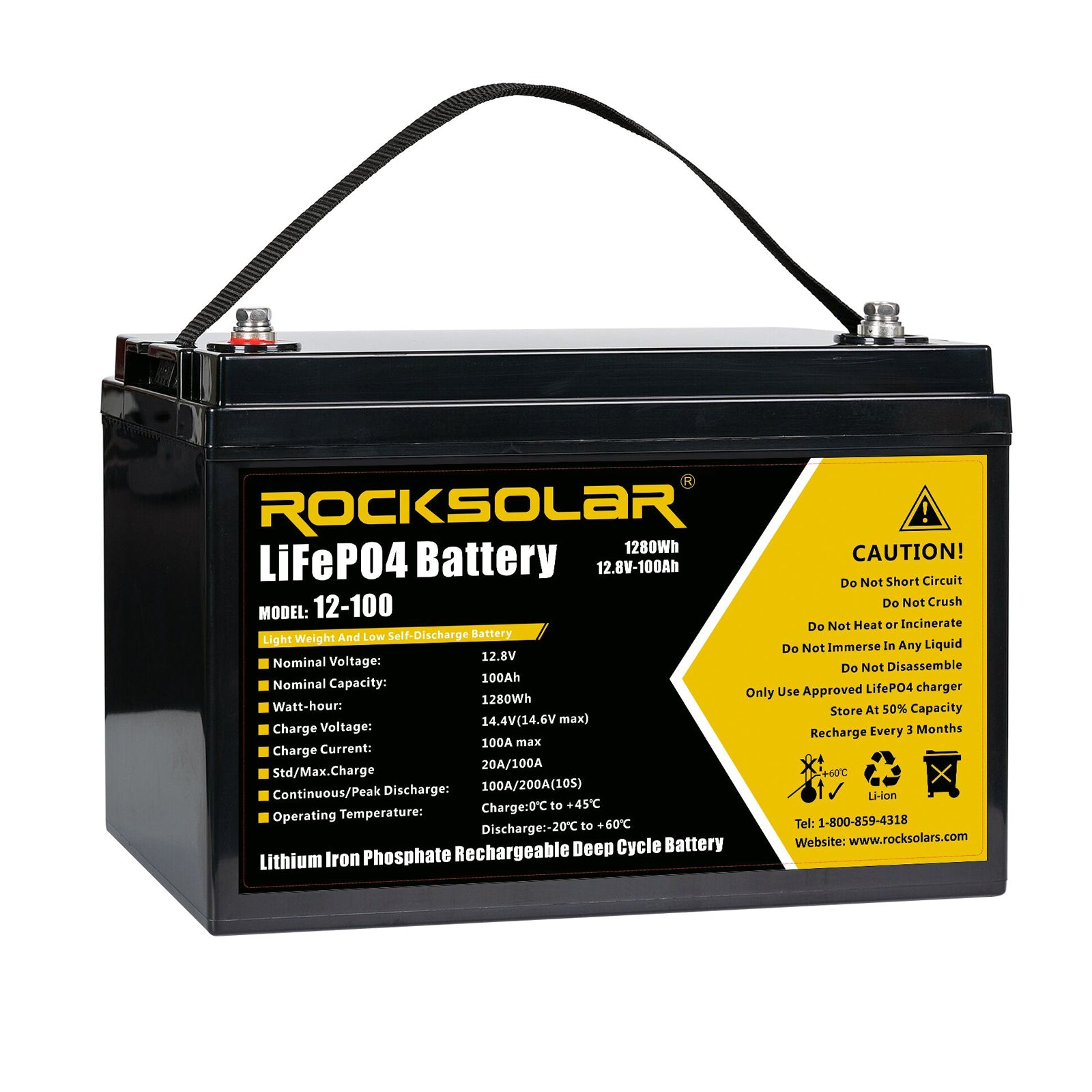

ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

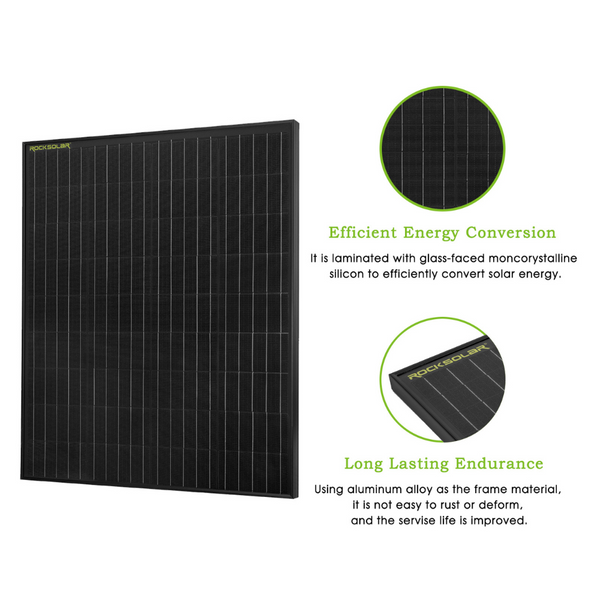

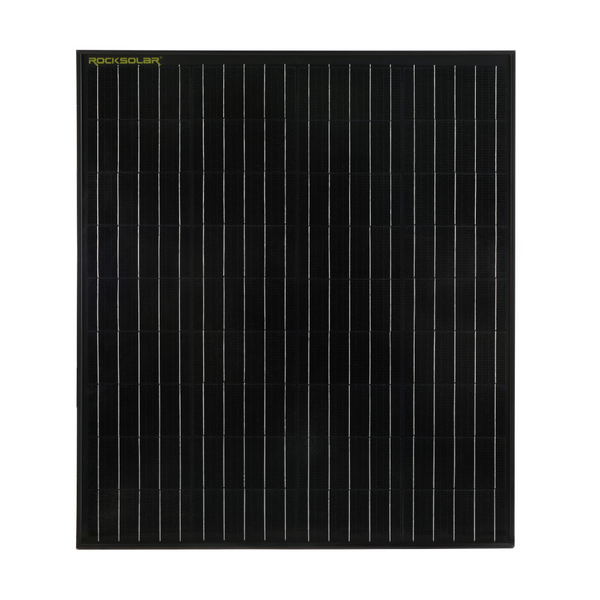

ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:

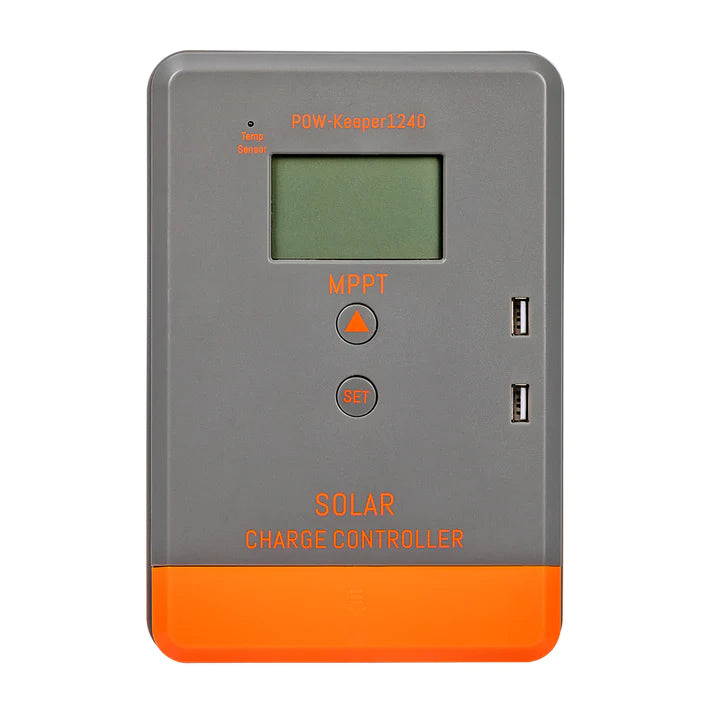

ROCKSOLAR 40A MPPT Solar Charge Controller:
ROCKSOLAR 1000W Pure Sine Wave Power Inverter:
| 12V 100Ah Deep Cycle LiFePO4 Battery | Details |
|---|---|
| Product Dimensions | 12.99 x 6.81 x 8.66 Inches |
| Battery Type | Lithium Ion battery |
| Special Features | Deep cycle |
| Working Temperature | -20C -60C |
| Voltage | 12 Volts (DC) |
| Item Weight | 12.52 kg |
| Warranty | 11 Years |

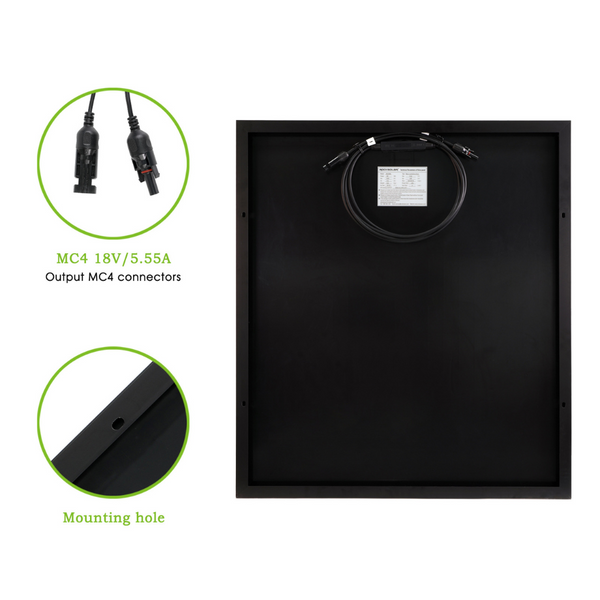

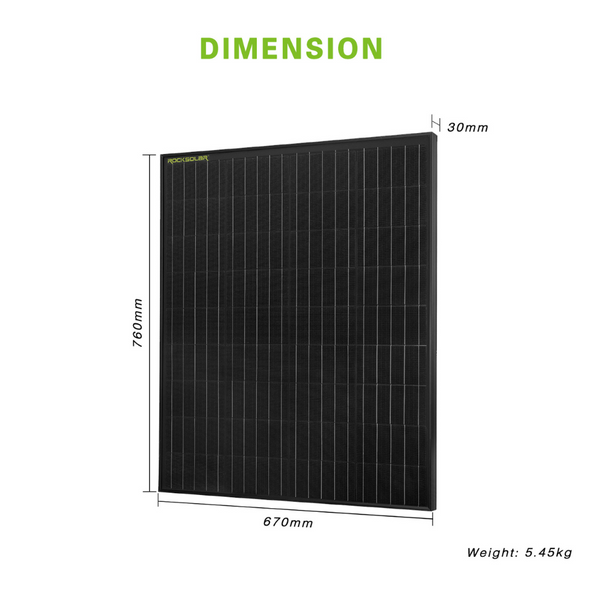

| 200W 12V Rigid Monocrystalline Solar Panel | Details |
|---|---|
| Rated Power | 200W |
| Type | Mono-crystalline silicon |
| System Voltage | 12V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |
| Dimensions | 1120*670*30 mm |
| Weight | approx. 8.30kg |
| Operating Temperature | -20~70 °C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 Year |
| 40A MPPT Solar Charge Controller | Details |
|---|---|
| Max Open Voltage of PV Module | 75Vdc |
| MPP Tracking Efficiency | 99.50% |
| Light Control Voltage | 5V |
| Charge Algorithm | 3 Stage |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 40A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | 16V (24V x 2) |
| Duration for absorption charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
| Floating Charging voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
| Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |
| Dimension | 123*178*48 |
| Installation Hole | 108*120 ∅5 |
| Warranty | 1 Year |

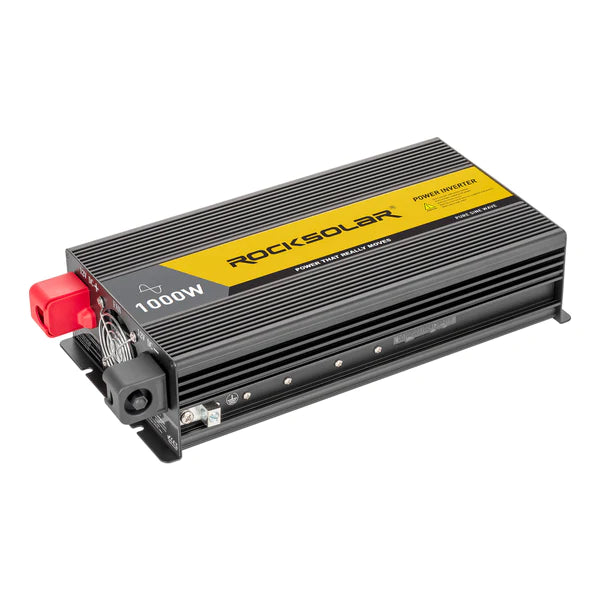

| 1000W Pure Sine Wave Power Inverter | Details |
|---|---|
| Rated power | 1000W |
| AC Voltage | 120V |
| Frequency | 60HZ |
| Resistive Load Continuous Output Power | 1000W |
| Inductive Load Continuous Output Power | 1000W The pump can start normally (beyond which protection may be possible without damaging the inverter) |
| Capacitive Load Continuous Output Power | 420±20WPF0.6 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter) |
| Waveform | Pure Sine Wave |
| Waveform DistortionTHD) | ≤5% |
| Voltage range | 917Vdc; 18V32V |
| Battery Voltage | 12Vdc; 24Vdc |
| DC Current | 98ALoad 1000W when entering 12Vdc; 47.9ALoad 1000W when entering 24Vdc) |
| No Load Loss | 0.8A; 0.7A |
| Shutdown mode static current | 1mA |
| Maximum efficiency | 90% |
| Battery type | All 12V batteries |
| Insurance slice | 40A*2 |
| Battery Low Voltage Alarm | 9.5/10/10.5/11/11.5/12/12.5VBuzzer alarm, LED display E06 |
| Battery Low Voltage Alarm Recovery | 11Vdc |
| Battery Low Voltage Protection | 10Vdc Peak buzzer alarm, bright red and green lights |
| Battery Low Voltage Protection Recovery | Recovery voltage within 30S11/11.5/12/12.5/13/13.5/14V |
| Battery High Voltage Protection | 17VLED display shows E02, automatic shutdown after 30S |
| Battery High Voltage Protection Recovery | Recovery voltage within 30S16.5V |
| Over Temperature | Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output |
| Output Short Circuit | Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S |
| Overload | Over 1600W 300ms locked after shutting off output (below 1600W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
| Overload | Over 1600W 300ms locked after shutting off output (below 1600W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
| USB Output Voltage | 5V |
| USB Output Current | 2.1A |
| Working Temperature | -2040℃ |
| Operating humidity | 1090%RH |
| Storage temperature, humidity | -30℃70℃,1095%RH |
| Weight | Net weight2.82 kg |
| Size | 357.6*171.9*78 mm(L*W*H) |
| Warranty | 1 Year |
The 12V 100AH LiFePO4 Battery provides a substantial storage capacity of 1200 Watt-hours, which can comfortably power various appliances and devices in your cottage.
ROCKSOLAR 1000W 12V Off-Grid Solar System includes two 200W Rigid Solar Panels. On a sunny day, these can collectively generate up to 300 watts of power per hour, depending on the sunlight's intensity and angle.
The 40A MPPT (Maximum Power Point Tracking) Solar Charge Controller serves as an intermediary between the solar panels and the battery. It optimizes the power received from the solar panels and safely charges the battery, maximizing efficiency and prolonging battery life.
The 1000W Pure Sine Wave Inverter converts DC power from the battery into AC power, which is compatible with most household appliances. You can power devices like a mini fridge, LCD TV, wifi routers, DC brushless water pump, coffee machine (<1000W), lighting, stereo, laptop, and phone chargers.
The 12V 100AH LiFePO4 Battery and 200W Rigid Solar Panels come with an impressive 10-year warranty. The 40A MPPT Solar Charge Controller and the 1000W Pure Sine Wave Inverter are covered by a 1-year warranty.
