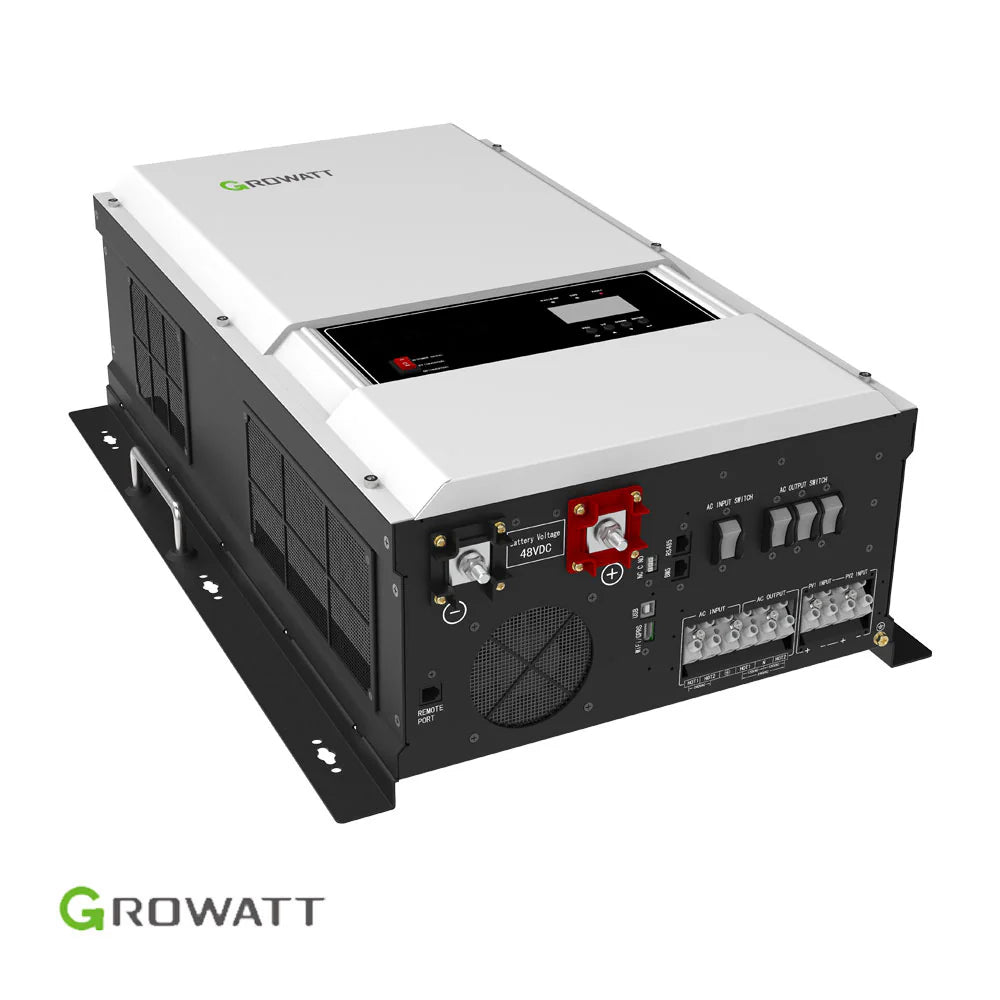

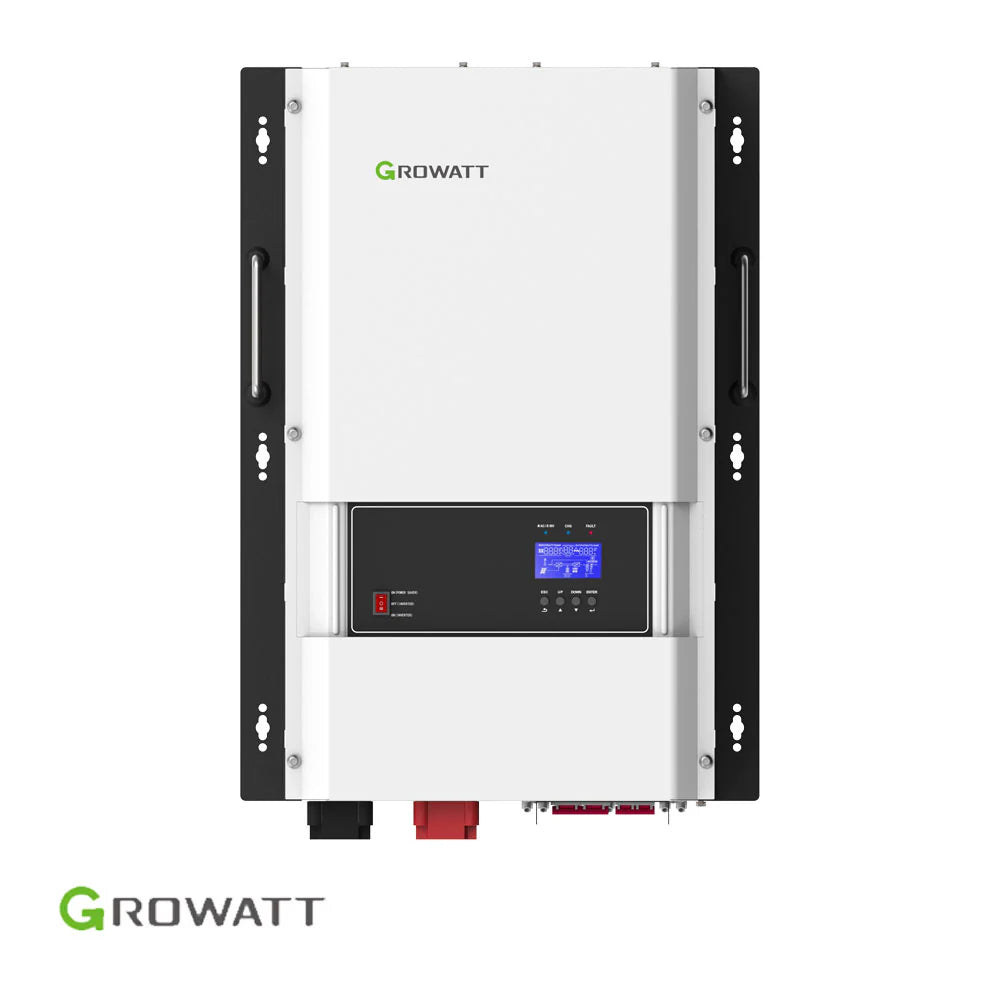

The Growatt 12KW Off-Grid Solar Inverter represents a pinnacle in energy management solutions, designed for those seeking robust, efficient, and versatile power systems. Engineered to cater to the demanding needs of large residential or commercial setups, this inverter seamlessly integrates into various energy environments, ensuring maximum independence and sustainability.
Ideal for powering large homes, commercial spaces, or any setup requiring a high-capacity, reliable off-grid solution, the Growatt 12KW Off-Grid Solar Inverter is your gateway to achieving energy independence and resilience.
What Can It Power?
Specification | Growatt 12KW Off-Grid Solar Inverter Details |
---|---|
Battery Voltage | 51.2VDC |
Battery Type | Lithium/Lead-acid |
Inverter Output (Rated Power) | 12KW |
Surge Rating | 36KW |
Waveform | Pure sine wave/ same as input (bypass mode) |
Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional) |
Output Frequency | 50Hz/60Hz +/-0.3 Hz |
Inverter Efficiency (Peak) | 97% |
Transfer Time | <10ms |
Solar Charger (Maximum PV Charge Current) | 120A |
Maximum PV Array Power | 7000W |
AC Input Voltage | 240VAC |
Max. Charging Current | 100A |
Protection Degree | IP21 |
Dimensions (W/H/D) | 380/650/225mm |
Weight | 75kg |
Operating Environment (Temperature Range) | 0°C to 50°C |
Warranty | 2 Years |
Certifications | UL STD.1741, CSA STD CSA C22.2 No.107.1 |
The Growatt 12KW Off-Grid Solar Inverter has a rated power of 12KW, suitable for large residential or commercial applications.
Yes, it's designed to work efficiently with or without a battery, utilizing solar panels or grid power directly for immediate energy needs.
The maximum PV array open circuit voltage is 250VDC, accommodating a robust solar array configuration.
For specific information on parallel operation capabilities, it's best to consult the manufacturer's documentation or customer support.
Yes, it supports WIFI/GPRS modules for remote monitoring, allowing for easy and effective management of your energy system.
It measures 380x650x225mm and weighs 75kg, designed to fit a variety of installation environments.
It allows configurable grid or solar input priority, optimizing energy consumption according to user needs and maximizing renewable energy usage.
It operates efficiently within a temperature range of 0°C to 50°C, ensuring reliable performance under various conditions.
Check with the manufacturer or retailer for specific warranty terms and coverage for this inverter model.
