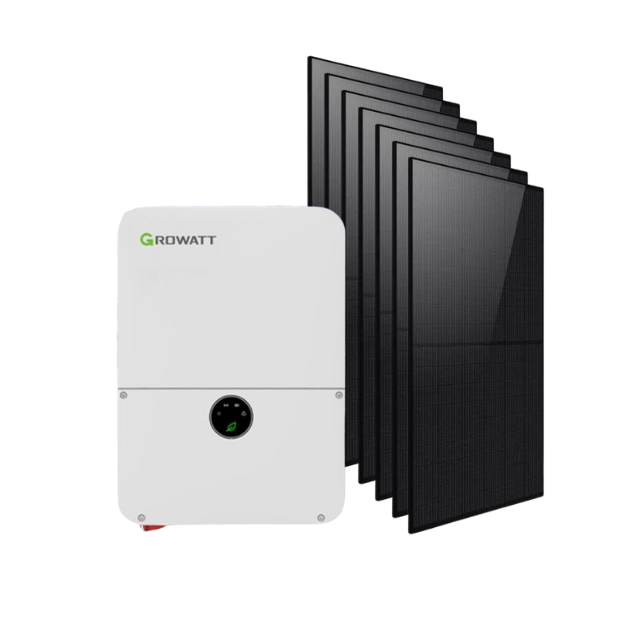

6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living
6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living
6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living
6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living
6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living
6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living
6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living
6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living

6 kW Grid-Tied Solar Panel Kit with 7000W Solar Panels - Complete Home Solar Power System for Energy Savings & Off-Grid Living

$3806.55 $6921 -45% OFF

Free shipping on all orders over $50

7-15 days international

24 people viewing this product right now!

30-day free returns

Secure checkout

95089664

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description



  • Description
  • Includes
  • Specifications
  • Datasheet
  • Downloads
  • Reviews

A comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt 6kW MIN 6000TL-XH-US Grid-Tie Inverter, and the high-performance 7000W Rigid Bifacial Solar Panels to provide an unrivaled energy independence experience.

Product Features

Growatt 6kW MIN 6000TL-XH-US Grid-Tie Inverter:

  • Battery Integration Ready: Ready for both DC Coupled and AC Coupled systems, compatible with Growatt APX HV batteries for battery storage solutions.
  • High Yields: With a DC/AC ratio up to 2.0, 3 MPP trackers, and a maximum efficiency of 98.4%, it ensures superior energy conversion.
  • Backup and Dark Start: Offers backup power capabilities and can start without grid power, ensuring your home is never without energy.
  • Comprehensive Protection: Supports Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI) for enhanced safety
  • Versatile Energy Management: Features modes like Self-consumption, Zero Export, TOU, and Off-grid to optimize energy use and savings.
  • Standards Compliant: Meets UL1741SA/SB, CA Rule 21, and HECO standards, ensuring broad acceptance and regulatory compliance.
  • Easy Monitoring: The WiFi module provides plug-and-play online monitoring through mobile or web, enabling easy management of your power system.
  • Leading Functions: Offers whole home backup and dark start operation for a comprehensive energy solution.
  • Installation Flexibility: Designed for both indoor and outdoor, wall-mounted installations, accommodating a variety of residential setups.
  • Trusted Manufacturer: Growatt, a global leader in solar technology, provides innovative products that maximize energy efficiency and savings.

ROCKSOLAR 440W Monocrystalline Bifacial Solar Panel (x16):

  • High-efficiency monocrystalline cells for superior performance
  • 440W power output per panel with a total array power of 7040W
  • Durable aluminum frame and anti-reflective glass for weather resistance
  • Easy installation with pre-drilled mounting holes
  • Bypass diodes to minimize shading impact on performance
  • Over 30 years of service life with a 12-year manufacturer warranty
  • Eco-friendly power generation to reduce carbon footprint
  • 1 x 6kW MIN 6000TL-XH-US Grid-Tie Inverter
  • 16 x 440W Bifacial Solar Panels
  • 1 x Set of Cables for Solar Panel to Inverter Connection
  • 1 x User Manual for the Inverter
  • 1 x User Manual for the Solar Panels
  • 1 x Warranty Card for the Complete System
  • 1 x Wifi Module Included

Technical Specifications


Inverter SpecificationDetails
ManufacturerGrowatt
TypeGrid-Tied/ Battery Storage
AC Power6.0kW
Max PV Input Power12 kW
MPP Trackers3
MPPT Voltage Range50~550V
Max Efficiency98.4%
Compatible BatteryGrowatt ARO/APX HV Battery, LG Prime(Gen3) Battery
Warranty10 years
CommunicationsCAN2.0, RS485, SUNSPEC / APP, Website
CertificateUL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540
PV INPUT - Max Input Voltage600V
PV INPUT - Full load Voltage Range210~500V
PV INPUT - Max Input Current per MPTT13.5A
PV INPUT - Max Short-circuit Current per MPTT16.9A
Battery Connection - Battery Voltage Range360~550V
Battery Connection - Rated Battery Voltage400V
Battery Connection - I/O DC Current14.3A
Battery Connection - I/O DC Power5.0kW
AC OUTPUT (GRID) - Nominal Power6.0kW
AC OUTPUT (GRID) - Max Output Current25A
AC OUTPUT (GRID) - Nominal AC Voltage208/240V
GENERAL DATA - Dimensions(W*H*D)15.75*22.4*6.98 inch (400*569*170.5mm)
GENERAL DATA - Weight32.3lbs (14.65kg)
InstallationIndoor, Outdoor, Wall-mounted
Monitoring ModuleWiFi+ LAN, 4G(Optional)

Solar Panel SpecificationDetails
Panel TypeMonocrystalline Bifacial
Power Output440W
Maximum Power Voltage32.98V
Cell Efficiency22.57%
Frame MaterialAluminum
Dimensions 1722mm x 1134mmX30mm
Weightapprox. 25-30 lbs
Operating Temperature-40°C to +85°C
Waterproof RatingIP65
Front GlassHigh light transmittance, low-iron tempered glass
Bypass DiodesIntegrated
ConnectorsMC4
Cable LengthVaries depending on the brand (approx. 3-6 ft)
Mounting Hole LocationsPre-drilled
Service Life30 years or more
Warranty12 years
