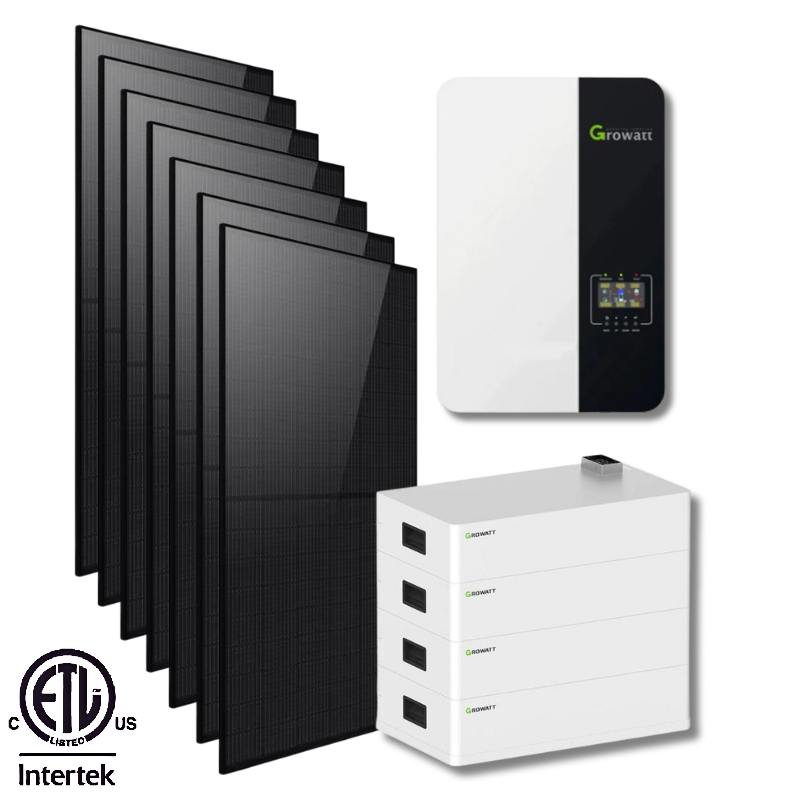

Introducing the Growatt Ultimate Home Solar Storage Kit - 10kW Energy Storage with 6kW Inverter + 4400W Solar Array, a comprehensive and powerful solution designed for 120V/240V 60AMP cottage, cabin and RV. This robust system combines the efficiency of the Growatt Off-Grid Storage Inverter SPF 6000T DVM-US MPV, the reliability of the Growatt 2X AXE 5.0L-C1 5kWh Battery, and the high-performance 4400W Bifacial Solar Panels to provide an unrivaled off-grid experience. With a power capability of up to 10kWh, this system is designed to meet the energy demands of most residential homes.
Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.
Product Features

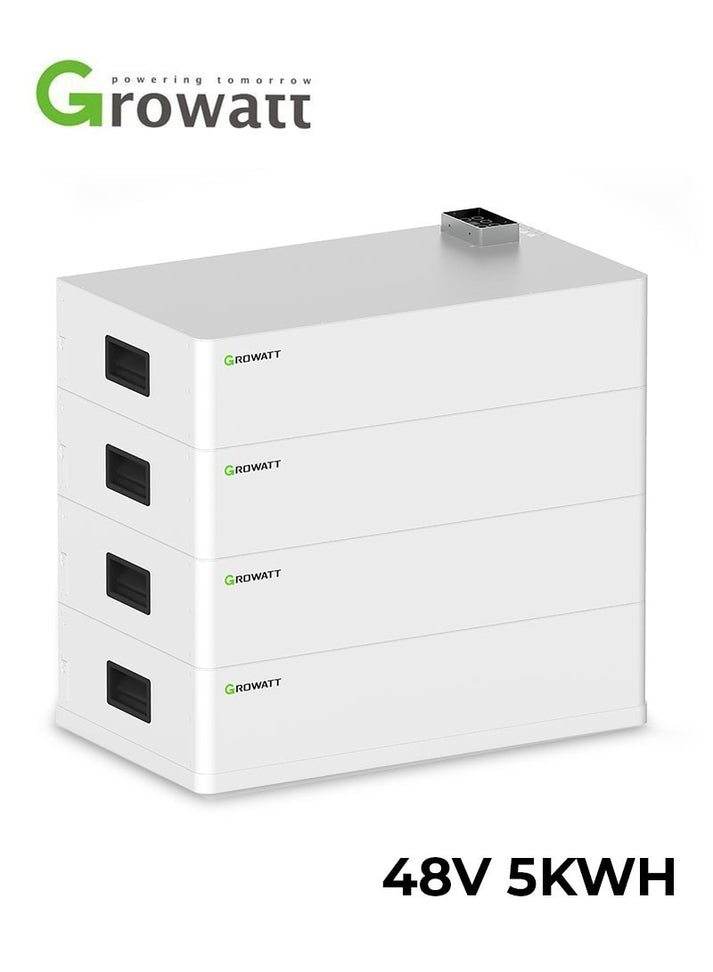

Growatt AXE 5.0L-C1 5kWh Battery (x2):
Growatt SPF 6000T DVM-US MPV Inverter:
ROCKSOLAR 440W Bifacial Monocrystalline Solar Panel (x10):
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.
| Growatt AXE 5.0L-C1 5kWh Battery | Details |
|---|---|
| Model | Growatt AXE 5.0L-C1 |
| Energy Capacity | 5.0kWh |
| Max Charge/Discharge Power | 3kWh |
| Max Charge/Discharge Current | 60A |
| Dimensions | 650 x 350 x 165mm (W x D x H) |
| Weight | 42kg |
| Nominal Voltage | 51.2V |
| Warranty | 10 years |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Voltage Range | 48 - 57.6V |
| Installation | Floor installation |
| Operation Temperature | 0°C-50°C/32-122°F |
| DoD | 92% |
| Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
| Communication Port | CAN/RS485 |
| Performance Warranty | 10 years |
| Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
| Growatt Off-Grid Storage SPF 6000T DVM-US | Details |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Inverter Output (Rated Power) | 6KW |
| Surge Rating | 18KW |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional) |
| Output Frequency | 50Hz/60Hz +/-0.5 Hz |
| Inverter Efficiency (Peak) | 88% |
| Transfer Time | 10ms |
| Solar Charger (Maximum PV Charge Current) | 80A |
| Maximum PV Array Power | 5000W |
| AC Input Voltage | 240VAC |
| Max. Charging Current | 120A |
| Protection Degree | IP20 |
| Dimensions (W/H/D) | 360/540/218mm |
| Weight | 52kg |
| Operating Environment (Temperature Range) | 0°C to 50°C |
| Warranty | Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1 |
| 440W Bifacial Solar Panel Specification | Details |
|---|---|
| Panel Type | Monocrystalline N type Topcon Bifacial |
| Power Output | 440W |
| Maximum Power Voltage | 32.98V |
| Cell Efficiency | 22.57% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mm X 30mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 20 years or more |
| Warranty | 12 years |
The kit includes a 6000W inverter, two 5kWh batteries for a total of 10Kwh energy storage, and a solar panel array capable of producing 22000W-28000W of power daily.
Yes, the kit is designed to function both off-grid and on-grid, making it versatile for different energy needs and preferences.
Yes, the system's modular design allows for expansion. You can add more batteries or solar panels to increase storage capacity and energy production.
The system requires minimal maintenance, mainly involving periodic checks to ensure all components are functioning correctly and keeping the solar panels clean for optimal performance.
The inverter intelligently manages power by prioritizing renewable solar energy for immediate use and storage, with the capability to draw from the grid when solar power is insufficient.
Yes, with the optional WIFI/GPRS connectivity, the system allows for remote monitoring and management, giving you control and insights into your energy usage from anywhere.
The components of the kit come with their individual warranties, ensuring long-term reliability and peace of mind for your investment.
Installation is straightforward, designed for ease of setup with detailed instructions provided. However, professional installation is recommended to ensure optimal performance and safety.
