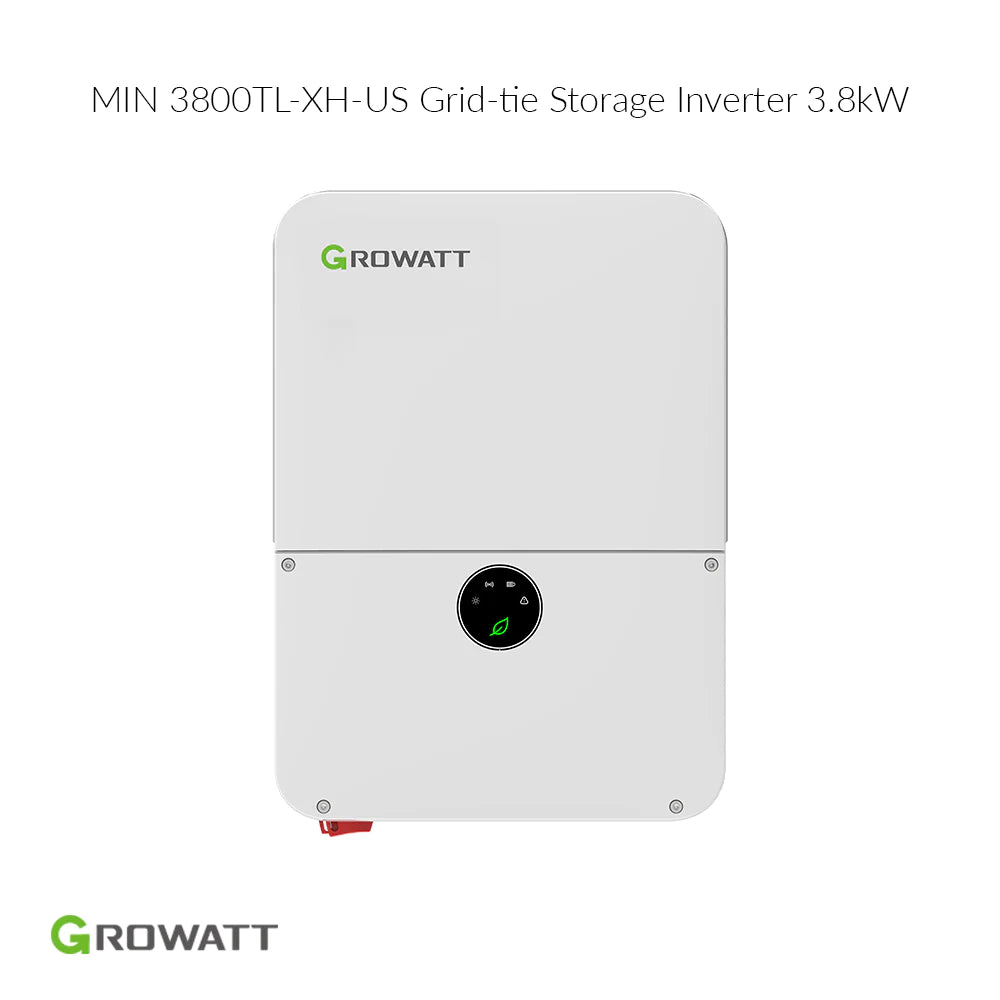

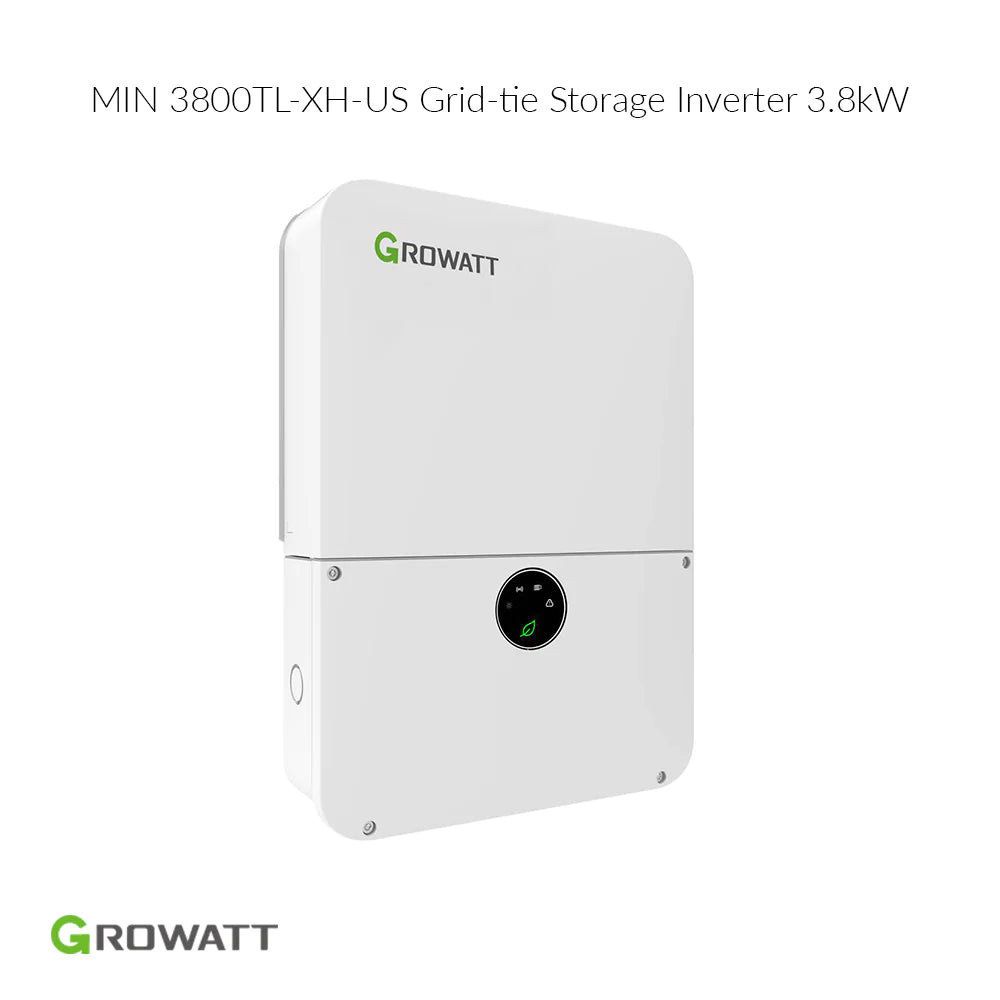

Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter
Embrace the future of home energy with the Growatt 3.8kW MIN 3800TL-XH-US, a smart inverter solution designed for the modern, energy-efficient home. With its compact design and remarkable 98.0% efficiency, this inverter is perfect for battery-ready rooftop solar systems, offering both grid-tie and battery storage capabilities.
Optimize your home’s energy with the Growatt 3.8kW MIN 3800TL-XH-US Inverter, combining cutting-edge technology with smart energy management for unparalleled efficiency and reliability.
| Specification | Details |
|---|---|
| Manufacturer | Growatt |
| Model | MIN 3800TL-XH US (WIFI/LAN+TIGO) |
| Rated Power Output [W] | 3800 |
| Length [mm (in)] | 569 mm (22.41 in) |
| Width [mm (in)] | 400 mm (15.75 in) |
| Depth [mm (in)] | 170.5 mm (6.98 in) |
| Weight [kg (lb)] | 17.4 kg (38.36 lb) |
| Wormanship Warranty Period [Years] | 10 |
| Inverter Type | Hybrid inverter |
| Maximum/Peak Efficiency [%] | 98 |
| CEC weighted efficiency @ 240V [%] | 97 |
| Transformer / Transformerless | Transformerless |
| DC Power Rating [W] | 7600 |
| Nom. DC Voltage [V] | 360 |
| Max. Input Power [W] | 7600 |
| Max. Input Voltage [V] | 600 |
| Min. DC voltage / start voltage [V] | 50 |
| Number of DC String Inputs (Inlets) | 4 |
| Number of MPP Trackers | 2 |
| Max. Input Power per MPPT [W] | 3800 |
| Max. Input Voltage per MPPT [V] | 600 |
| Max. Input Current per MPPT [A] | 16.9 |
| Voltage Lower Limit for MPP Range [V] | 50 |
| Voltage Upper Limit for MPP Range [V] | 550 |
| DC Disconnection Type | Integrated |
| Reverse-Polarity Protection | Yes |
| Ground-Fault Isolation Detection | Yes |
| AC Power Rating [W] | 3800 |
| Nominal AC Power [W] | 3800 |
| Max. AC Power [W] | 3800 |
| AC voltage range [V] | 208V: 183-229V / 240V: 211-264V |
| AC grid frequency [Hz] | 60 |
| Max. output current [A] | 16 |
| Nominal AC Voltage [V] | 208/240 |
| Maximum AC Voltage Range [V] | 264 |
| Nominal AC Frequency [Hz], range [Hz-Hz] | 60 |
| AC Connection Type | L1/L2/N/PE |
| AC Current Distortion [THD%] | <3% |
| AC Input Wire Gauge Range [AWG] | 6 AWG - 8 AWG |
| Sleep (Night) Consumption [W] | <5W |
| NEMA Enclosure Rating | NEMA4X (IP65) |
| Cooling Method | Natural Convection |
| Ambient Temperature Range [°C(°F)] | -25°C to +60°C (-13°F to +140°F) |
| Operating Humidity [%] | 0~95% |
| Operating Altitude [ft/m] | 9843ft (3000m) |
| Display | OLED |
| Communication | RS485 included, WiFi/4G Optional |
| Basic Warranty [Years] | 10 |
| Warranty Extension Options [Years] | 15,20 |
| Compliances | IEEE1547, CA Rule21, Rule14 (HECO Compliant), FCC Part15 Class B, UL1741, UL1741SA,CSA C22.2, UL1699B, UL1741 CRD |
| AC grid range [Hz] | 45-65 |
| Max. recommended PV power (@ module STC) | 7600 |
The Growatt 3.8kW MIN 3800TL-XH-US boasts a maximum efficiency of 98% and a CEC weighted efficiency of 97% at 240V, making it one of the most efficient inverters in its class.
Yes, this inverter can operate in a grid-tie configuration without batteries, allowing for flexible energy solutions that can adapt to your needs.
The MIN 3800TL-XH-US is equipped with 2 MPPTs, each capable of managing a maximum input power of 3800W, optimizing solar energy harvest from multiple roof orientations.
This inverter supports RS485 communication as included, with options for WiFi/4G for remote monitoring and management of your solar system.
Yes, it complies with major standards including IEEE1547, CA Rule 21, HECO Rule 14, FCC Part 15 Class B, UL1741, UL1741SA, CSA C22.2, and UL1699B, ensuring its suitability for various installations.
The inverter comes with a basic warranty of 10 years, with options for warranty extension up to 15 or 20 years, offering long-term reliability and peace of mind.
Yes, it is designed for flexibility, supporting both DC coupled and AC coupled systems for comprehensive energy management and storage solutions.
The MIN 3800TL-XH-US utilizes natural convection for cooling, ensuring efficient operation without the need for external cooling mechanisms.
The maximum input voltage for this inverter is 600V, allowing for a wide range of PV module configurations.
Yes, it features integrated DC disconnection, reverse-polarity protection, and ground-fault isolation detection, ensuring safe and reliable operation.
