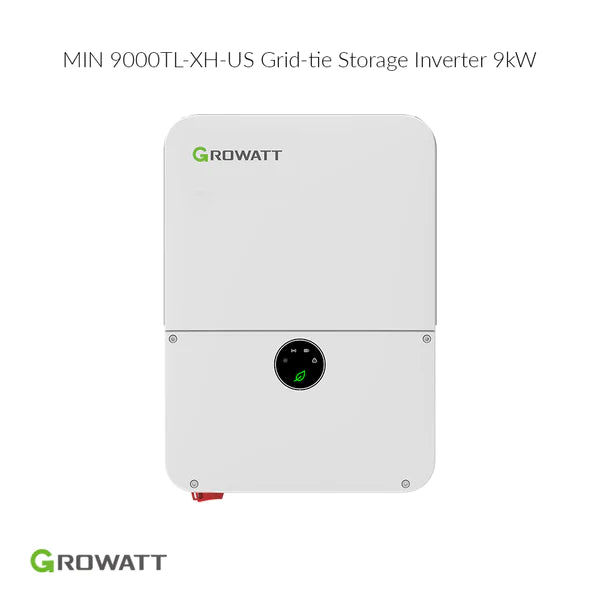

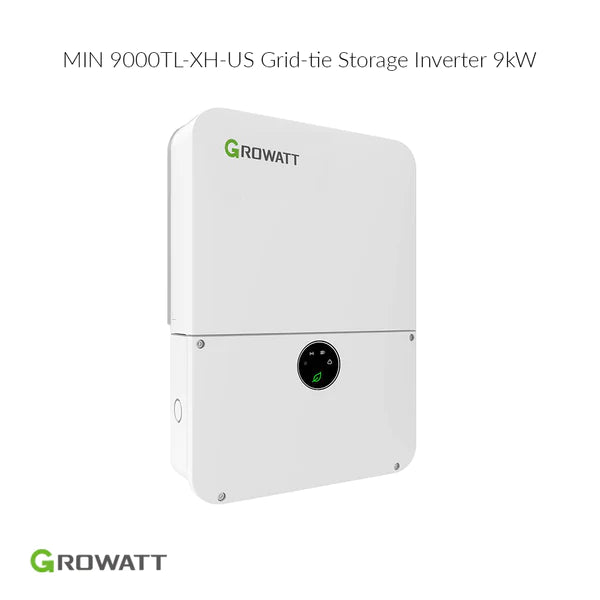

Growatt 9kW MIN 9000TL-XH-US Grid-Tied | Battery Storage Solar Inverter
The Growatt 9kW MIN 9000TL-XH-US is a top-tier grid-tie inverter that offers exceptional multi-functional capabilities for both grid-tie and battery storage systems. Tailor-made for modern residential energy storage requirements, this versatile inverter also accommodates off-grid and solar systems when used in conjunction with the Growatt ATS (Auto Transfer Switch). Its user-friendly, plug-and-play WiFi module facilitates effortless online monitoring of your power system via mobile phone or website portal, ensuring you stay informed and in control.
With the Growatt MIN 9000TL-XH-US Solar Inverter, Growatt reinforces its commitment to innovation and renewable energy, providing homeowners with a powerful, efficient, and versatile tool to maximize their solar power usage, promote energy independence, and contribute to a greener planet.
| Specification | Details |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tie / Battery Storage |
| AC Power | 9.0kW |
| Max PV Input Power | 18.0kW |
| MPP Trackers | 4 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.5% |
| Compatible Battery | Growatt ARO/APX HV Battery / LG Prime(Gen3) Battery |
| Warranty | 10 Years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV Input | |
| Max PV Input Power | 18.0 kW |
| Max Input Voltage | 600V |
| Full Load Voltage Range | 190~500V |
| Max Input Current per MPTT | 13.5A |
| Max Short-circuit Current per MPTT | 16.9A |
| MPP Trackers | 4 |
| Strings per MPP Tracker | 2 |
| Battery Connection | |
| Battery Voltage Range | 360~550V |
| Rated Battery Voltage | 400V |
| I/O DC Current | 14.3A |
| I/O DC Power | 5.0kW |
| AC Output (Grid) | |
| Nominal Power | 9.0kW |
| Max Output Current | 45A |
| Nominal AC Voltage | 208/240V |
| General Data | |
| Dimensions (W*H*D) | 15.8*25.2*7.4 inch (400*638*187mm) |
| Weight | 45.2lbs (20.5kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
This inverter operates at a peak efficiency of 98.5%, ensuring that a significant portion of the solar energy collected is efficiently converted into usable power for your home or business.
Yes, the Growatt 9kW inverter is primarily designed for grid-tie and battery storage systems but can support off-grid operations when used with the Growatt ATS (Auto Transfer Switch) and suitable storage batteries.
Absolutely, it comes equipped with four MPPT trackers, enabling it to manage multiple PV arrays efficiently, thereby optimizing the solar energy harvest.
The inverter is compatible with various high-voltage battery systems, including the Growatt ARO/APX HV battery and LG Prime(Gen3) Battery, offering versatile energy storage solutions.
Yes, it features a WiFi module for easy online monitoring, enabling you to track your power system's performance via a mobile app or web portal from anywhere.
Growatt offers a 10-year warranty for this inverter, demonstrating their confidence in the product's durability and their commitment to customer satisfaction.
The MIN 9000TL-XH-US is equipped with comprehensive safety features, including Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI), enhancing the protection for your solar energy system.
Yes, it meets critical industry regulations and standards, including UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule 21, and HECO, ensuring its suitability for a wide range of installations.
