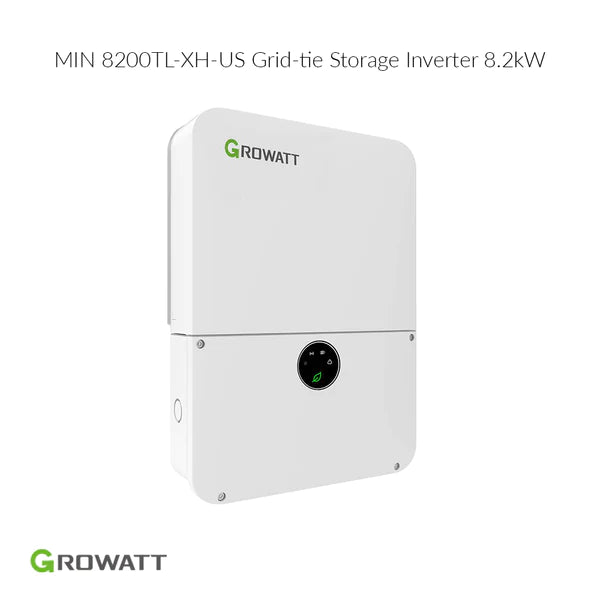

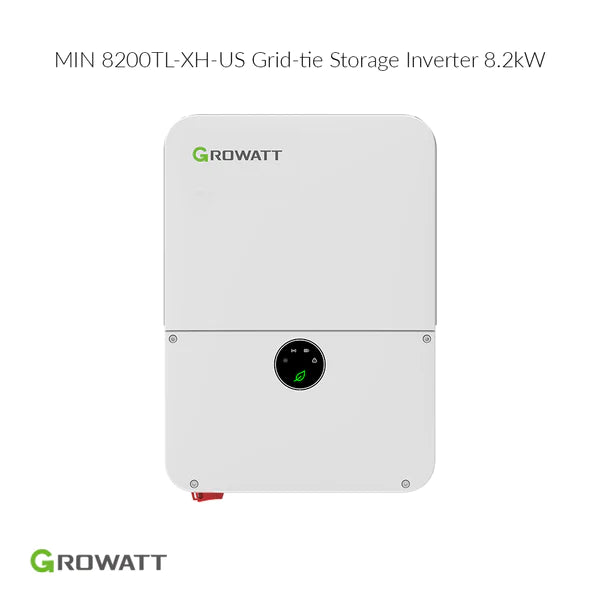

Growatt 8.2kW MIN 8200TL-XH-US Grid-Tie | Battery Storage Solar Inverter
The Growatt 8.2kW MIN 8200TL-XH-US is an advanced grid-tie inverter with multifunctional capabilities for both grid-tie and battery storage systems. Designed specifically for residential energy storage systems, this model also supports off-grid and solar systems when paired with Growatt ATS (Auto Transfer Switch). With its plug-and-play WiFi module, monitoring your power system's status online via mobile phone or website portal has never been easier.
The Growatt MIN 8200TL-XH-US Solar Inverter stands as a testament to Growatt's innovation and commitment to renewable energy, offering homeowners a powerful, efficient, and reliable solution for harnessing solar power, enhancing energy independence, and reducing environmental impact.
| Specification | Details |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tie / Battery Ready |
| AC Power | 8.2kW |
| Max PV Input Power | 16.4kW |
| MPP Trackers | 4 |
| MPPT Voltage Range | 170~500V |
| Max Efficiency | 98.3% |
| Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
| Warranty | 10 Years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV Input | |
| Max PV Input Power | 16.4 kW |
| Max Input Voltage | 600V |
| Full Load Voltage Range | 170~500V |
| Max Input Current per MPTT | 13.5A |
| Max Short-circuit Current per MPTT | 16.9A |
| MPP Trackers | 4 |
| Strings per MPP Tracker | 2 |
| Battery Connection | |
| Battery Voltage Range | 360~550V |
| Rated Battery Voltage | 400V |
| I/O DC Current | 24A/24A |
| I/O DC Power | 8.5kW |
| AC Output (Grid) | |
| Nominal Power | 8.2kW |
| Max Output Current | 35A |
| Nominal AC Voltage | 208/240V |
| General Data | |
| Dimensions (H*W*D) | 15.8*25.2*7.4 inch (400*638*187mm) |
| Weight | 45.2lbs (20.5kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
This inverter operates at a maximum efficiency of 98.3%, ensuring that a significant portion of the solar energy collected is converted into usable power for your home.
Yes, while it is designed primarily for grid-tie and battery storage systems, it can also support off-grid operations when paired with Growatt ATS (Auto Transfer Switch) and appropriate storage batteries.
Indeed, it is equipped with four MPPT trackers, allowing it to efficiently manage multiple PV arrays for optimal solar energy harvest.
The Growatt 8.2kW inverter supports battery storage solutions and is compatible with Growatt ARO HV Battery / LG Prime(Gen3) Battery, offering flexibility in energy storage options.
Yes, the inverter includes a WiFi module for convenient plug-and-play online monitoring, allowing you to oversee your power system's status via a mobile app or web portal.
The inverter comes with a 10-year warranty, highlighting Growatt's commitment to durability and customer satisfaction.
The Growatt MIN 8200TL-XH-US includes safety features like Rapid Shutdown (RSD), Arc Fault Circuit Interrupter (AFCI), and is equipped to support RGM meters, providing multiple layers of protection for your solar energy system.
Yes, it complies with several industry standards including UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, and is UL9540 compliant, ensuring broad acceptance in various installations.
