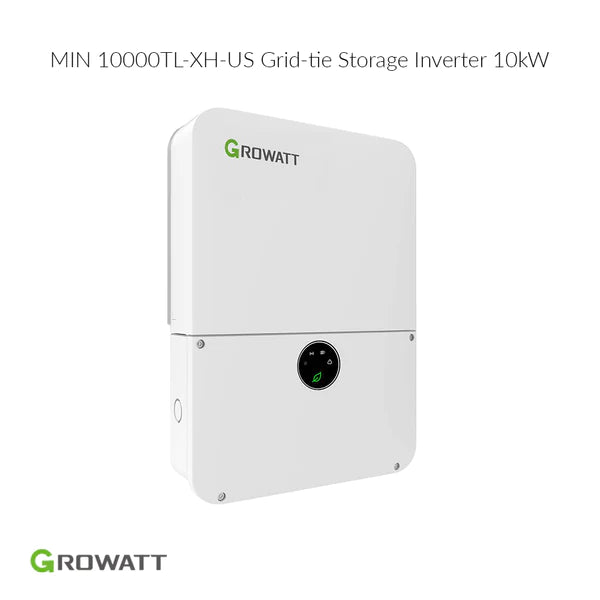

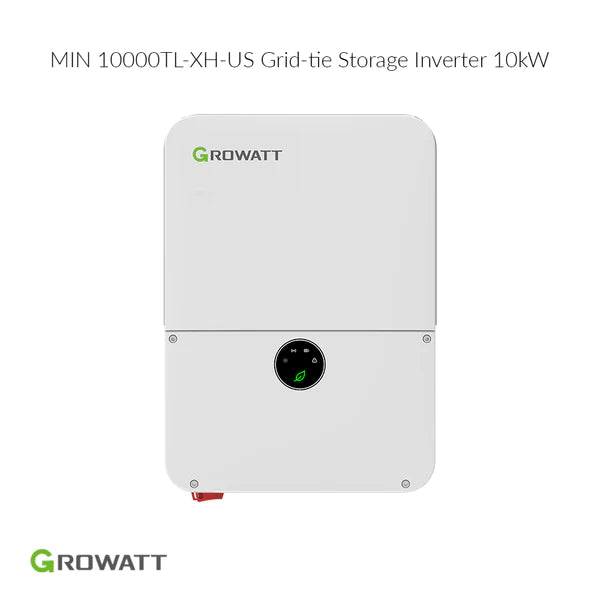

Growatt MIN10000TL-XH-US 10kW Grid-Tie | Battery Storage Solar Inverter
The Growatt MIN10000TL-XH-US is a state-of-the-art Grid-Tie inverter, meticulously crafted for residential energy storage systems. This versatile model is designed to facilitate not just grid-tie and battery storage capabilities but also to accommodate off-grid and solar systems with the addition of Growatt ATS (Auto Transfer Switch). Equipped with a user-friendly WiFi module, it allows for straightforward, plug-and-play online monitoring of your power system's status through a mobile phone or web portal, ensuring you are always in control and informed.
Growatt's MIN10000TL-XH-US Solar Inverter stands as a testament to the company's dedication to innovation, offering a high-quality, efficient, and versatile solution for leveraging solar power to achieve energy independence and sustainability.
| Specification | Details |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tie / Battery Storage |
| AC Power | 10kW |
| Max PV Input Power | 20kW |
| MPP Trackers | 4 |
| MPPT Voltage Range | 210~500V |
| Max Efficiency | 98.3% |
| Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
| Warranty | 10 Years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV Input | |
| Max PV Input Power | 20.0 kW |
| Max Input Voltage | 600V |
| Full Load Voltage Range | 210~500V |
| Max Input Current per MPTT | 13.5A |
| Max Short-circuit Current per MPTT | 16.9A |
| MPP Trackers | 4 |
| Strings per MPP Tracker | 2 |
| Battery Connection | |
| Battery Voltage Range | 360~550V |
| Rated Battery Voltage | 400V |
| I/O DC Current | 30A/30A |
| I/O DC Power | 10.3kW |
| AC Output (Grid) | |
| Nominal Power | 10kW |
| Max Output Current | 42A |
| Nominal AC Voltage | 208/240V |
| General Data | |
| Dimensions (H*W*D) | 15.8*25.2*7.4 inch (400*638*187mm) |
| Weight | 45.2lbs (20.5kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
This inverter operates at a maximum efficiency of 98.3%, ensuring optimal conversion of solar energy into electricity for your home or business.
Yes, while primarily designed for grid-tie and battery storage systems, it can also accommodate off-grid systems when paired with the Growatt ATS (Auto Transfer Switch) and appropriate batteries.
Indeed, with four MPPT trackers, it efficiently manages multiple PV arrays to maximize solar harvest and energy production.
The inverter is compatible with a variety of high-voltage battery systems, including the Growatt ARO HV Battery and LG Prime(Gen3) Battery, offering flexible storage options.
Yes, equipped with a plug-and-play WiFi module, it enables real-time monitoring of your system's performance through a mobile app or website portal.
The inverter comes with a 10-year warranty, showcasing Growatt's commitment to product quality and customer satisfaction.
It includes safety features such as Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI), providing comprehensive protection for your solar energy system.
Yes, it adheres to key industry standards, including UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule 21, and UL9540, ensuring compliance and broad installation applicability.
