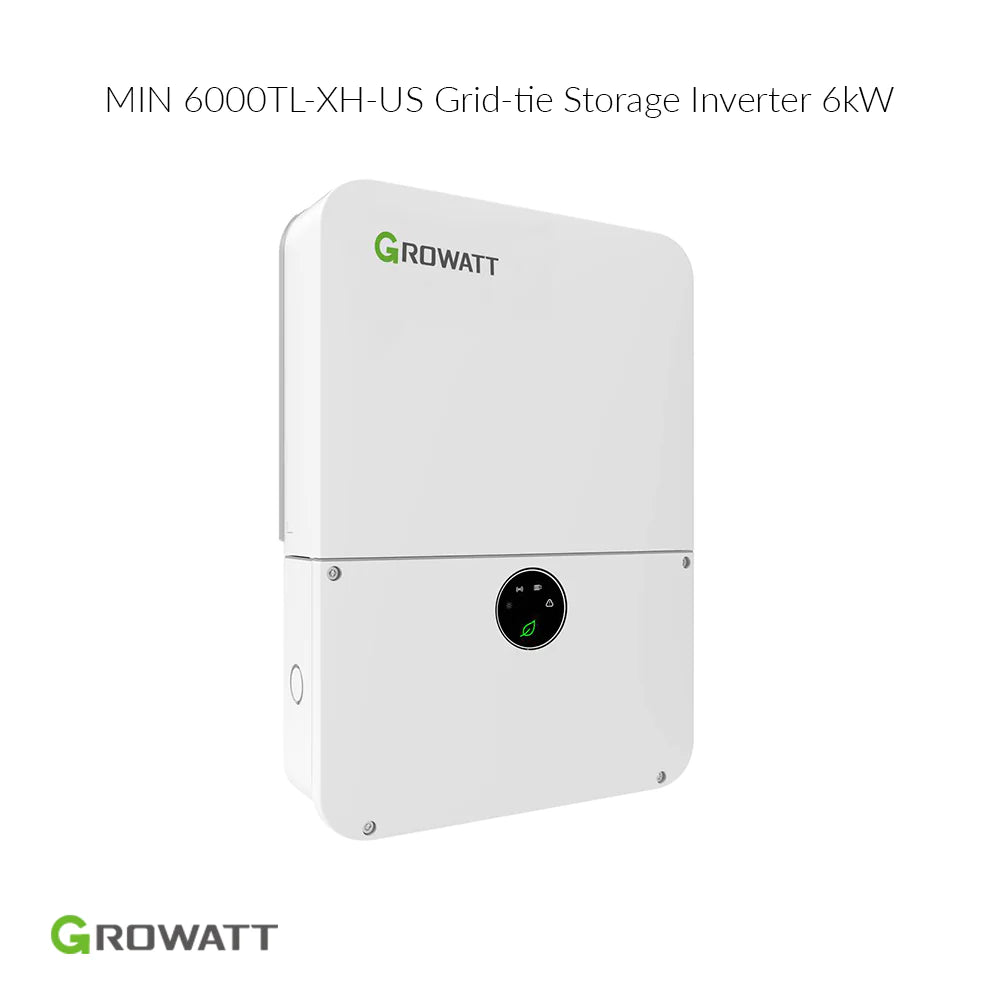

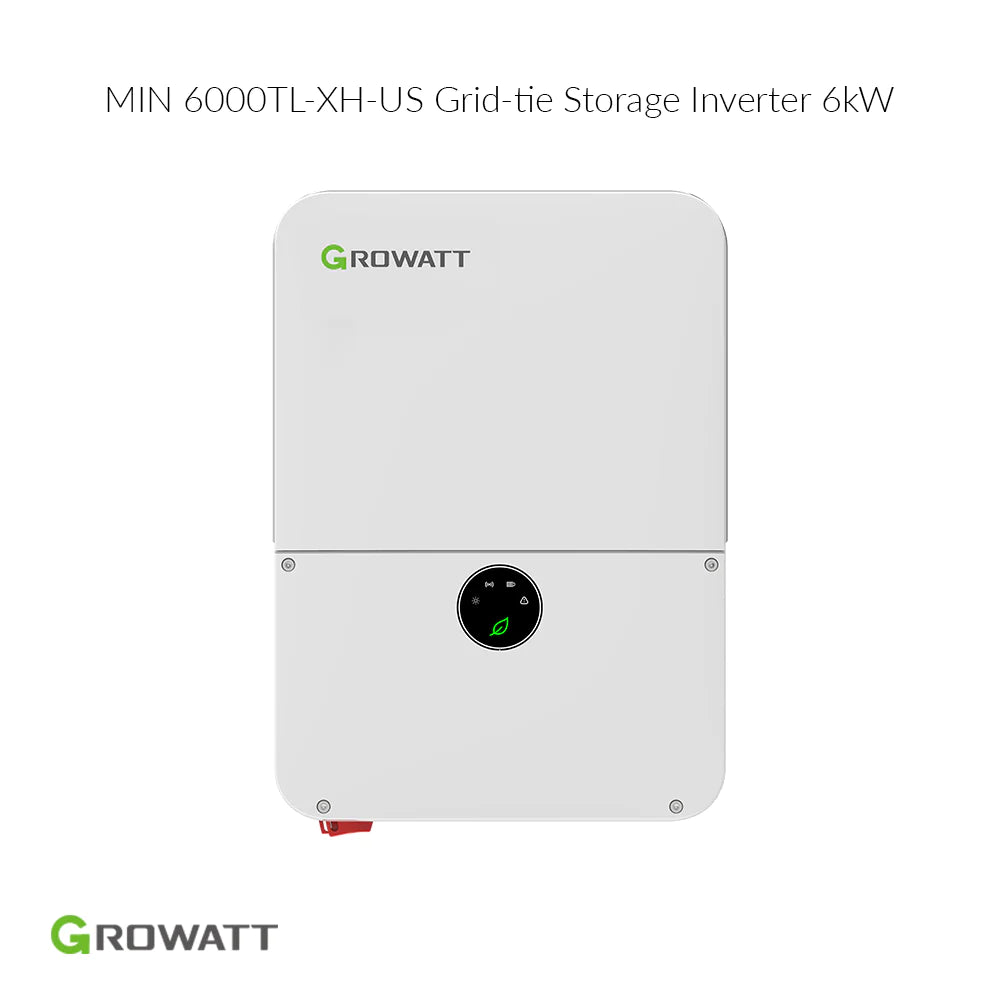

Growatt 6kW MIN 6000TL-XH-US Grid-Tie | Battery Storage Solar Inverter
Introducing the Growatt MIN 6000TL-XH-US, a state-of-the-art solar inverter designed for residential energy storage systems. This grid-tie inverter, known for its multifunctionality, brings together efficiency, flexibility, and reliability, making it an ideal choice for homeowners looking to enhance their energy independence.
Embrace a sustainable future with the Growatt 6kW MIN 6000TL-XH-US Inverter, engineered to meet the needs of the modern, energy-conscious homeowner.
| Specification | Details |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tied/ Battery Storage |
| AC Power | 6.0kW |
| Max PV Input Power | 12 kW |
| MPP Trackers | 3 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.4% |
| Compatible Battery | Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV INPUT - Max Input Voltage | 600V |
| PV INPUT - Full load Voltage Range | 210~500V |
| PV INPUT - Max Input Current per MPTT | 13.5A |
| PV INPUT - Max Short-circuit Current per MPTT | 16.9A |
| Battery Connection - Battery Voltage Range | 360~550V |
| Battery Connection - Rated Battery Voltage | 400V |
| Battery Connection - I/O DC Current | 14.3A |
| Battery Connection - I/O DC Power | 5.0kW |
| AC OUTPUT (GRID) - Nominal Power | 6.0kW |
| AC OUTPUT (GRID) - Max Output Current | 25A |
| AC OUTPUT (GRID) - Nominal AC Voltage | 208/240V |
| GENERAL DATA - Dimensions(W*H*D) | 15.75*22.4*6.98 inch (400*569*170.5mm) |
| GENERAL DATA - Weight | 32.3lbs (14.65kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
The maximum efficiency of the Growatt 6kW MIN 6000TL-XH-US inverter is 98.4%, making it one of the most efficient inverters available for residential energy storage systems.
Yes, the Growatt MIN 6000TL-XH-US is versatile and can be used for grid-tied, battery storage, and off-grid systems when paired with the Growatt Auto Transfer Switch (ATS).
The inverter supports multiple energy management modes including Self-consumption, Zero Export, Time of Use (TOU), and Off-grid, allowing for efficient energy use and savings.
It is compatible with Growatt ARO/APX HV batteries and LG Prime (Gen3) batteries, providing flexibility in choosing storage options.
The inverter includes a WiFi module for plug-and-play monitoring, enabling you to check your system's status online via a mobile app or website portal.
It supports Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI), enhancing the safety and reliability of your energy system.
The Growatt MIN 6000TL-XH-US is certified under UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule 21, and UL9540, ensuring compliance with industry standards.
It comes with a 10-year warranty, highlighting Growatt's commitment to quality and customer satisfaction.
